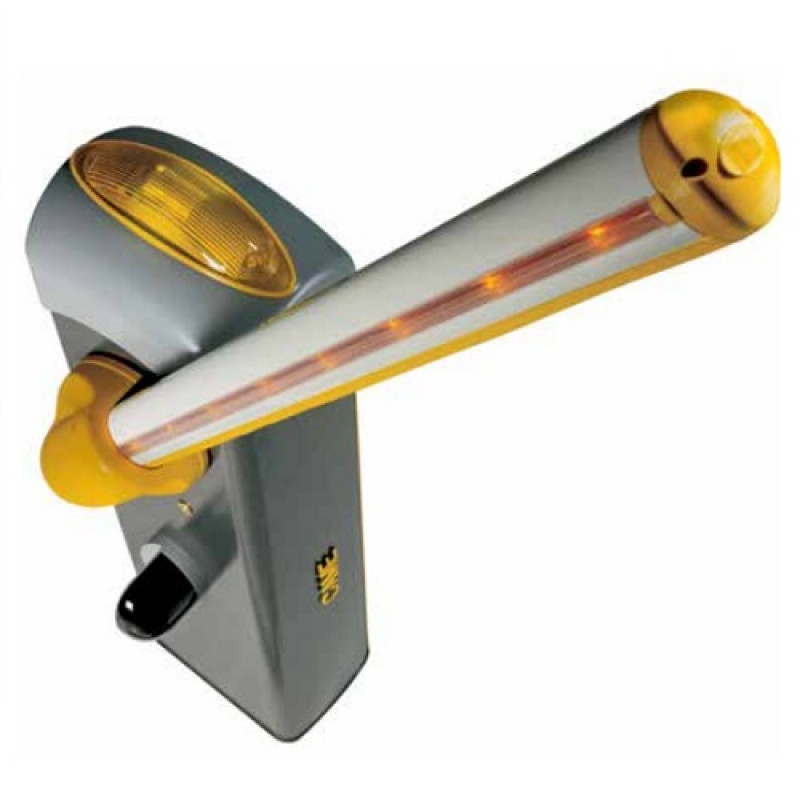

CAME (G4040Z) 24V Barrier Unit Complete with PCB - Up to 3.75m

CAME (G4040Z) 24V Barrier Unit Complete with PCB - Up to 3.75m

Barriers with 24 V DC gearmotor and on-board control panel. Barrier in galvanised and painted steel. Fitted to take accessories. The ideal solution for intensive vehicular traffic conditions. Passage clearance up to 3.75m.

• A modern style barrier, aesthetically perfect for any setting.
• The LED dome-shaped flashing light and the photocells can be integrated into the cabinet to ensure safety as well as durability.
• The protective cover safeguards the barrier movement against any shearing action when opening and closing.
• The 24 V DC choice is ideal for the intensive duty cycle.
• Combined and compass opening function, with RSE card (for G4040E and G4040IE barriers).

Gard 4: the automatic barrier that combines design and safety

Automatic road barrier for openings up to 3.75 m. Soft profiles, rounded edges for a solution that blends seamlessly into various installation settings.

LED flashing light
Guaranteeing total visibility of the light signal.

Protective wand casing
Protection from any knocks and risks due to wand rotation.

Command electronics
Protected by die-cast aluminium casing, it is positioned in such a way as to facilitate any type of intervention.

Seamless integration
The safety photocells are affixed directly to the barrier body without affecting the aesthetics of the product.

Resistant
Also available with AISI 304 stainless steel cabinet.

Wand with break-through connector (two methods):

• after the impact, the wand detaches from the connector
• the wand rotates by 90° on the horizontal plane
• the wand rests on the ground

Energy saving
Equipped with the new “Sleep Mode” technology that minimises the consumption of electrical energy when the motor is not in service.

The benefits of 24 V electronics

• no more power failures. The electronics automatically detects any power failure and activates emergency operation by using backup batteries
• speed under control. According to requirements, the electronics is able to adjust the speed of manoeuvre
• intensive use. The low voltage gearmotor ensures ideal operation of the barrier in conditions of intensive use
• obstacle detection. A special electronic circuit constantly analyses regular operation, either stopping or reversing the movement when coming into contact with any obstacles

Technical Specifications:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 230 AC
• Motor power supply (V): 24 DC
• Current draw (A): 15 Max.
• Power (W): 300
• Opening time at 90° (s): 2 ÷ 6
• Duty cycle (%): INTENSIVE SERVICE
• Torque (Nm): 600
• Operating temperature (°C): -20 ÷ +55

For more details, please refer with our attached datasheet.
