CDV (RTE-AIR) Infrared exit device, architrave, surface
- Brand:CDVI
- Product Code:RTE-AIR
- Availability:Please Call or Email Us to Check Availability

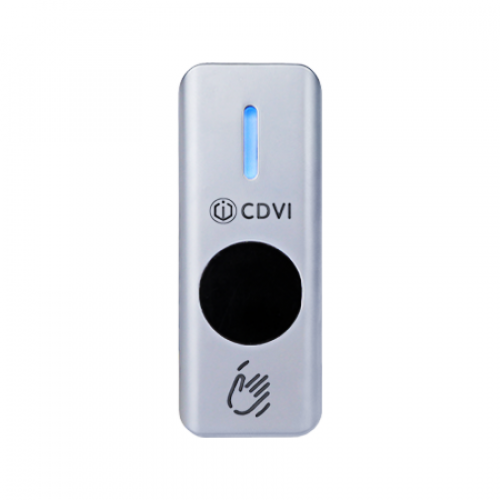

CDV (RTE-AIR) Infrared Exit Device, Architrave, Surface
Our range of infrared exit switches have a brushed stainless steel faceplate and are supplied surface mounted. Infrared detection allows switch activation with just a hand wave at 3-15 cm adjustment range, without needing to make contact with the device. This touch-free activation is ideal for sterile environments, DDA compliant installations and general high traffic areas such as hospitals, public buildings and colleges. The RTE-AIR can be connected directly to an access control device to be used as an exit button. The bi-coloured LED indicator gives visual verification of the device status.
- Touchless exit switch
- Adjustable infrared sensor
- Stylish design
- LED status indicator
- Surface mount
TECHNICAL INFORMATION:
- Sensor: infrared adjustable 3-15cm
- Input Power: 12-24Vdc
- Opertaing Current: Stand By - 10mA, Active - 33mA
- Relay Timed: 0.1 sec – 30 sec
- Contact Rating: 24Vdc 2A
- Output Contact: Single Pole NO/NC/COM
- Mechanical Life: 500,000
- Operating temperature: -20°C to 55°C
- IP68 rated
- 80 x 32 x 23mm
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
