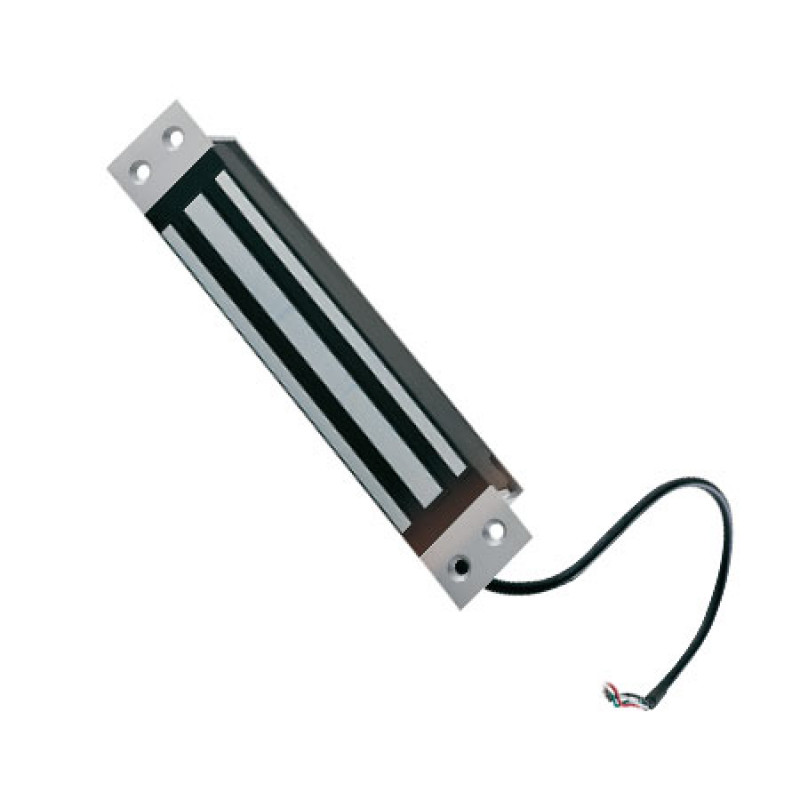

CDVI, V3ER/M300M, 300kg flush magnetic lock, monitored
- Brand:CDVI
- Product Code:V3ER
- Availability:Please Call or Email Us to Check Availability
CDVI, V3ER (M300M), 300kg flush magnetic lock, monitored
Up to 300kg holding force, Fits AT300-H series housings
V3ER/M300M - The M300M is a popular mortice magnetic lock with a holding force of 300kg - it is used within the BO-Series of profiled housings and transoms, but due to its multi-fix features and its slimmer profile, it is ideal for many applications including installation at point of door manufacture. The unit os 12/24Vdc selectable, and includes lock status monitoring as standard.
Key Features:
- Up to 300kg holding force.
- Monitored
- No moving parts
- 12/24Vdc
- Fits AT300-H series housings
Specifications:
- Dimensions: 228 x 39 x 27mm
- Satin anodised aluminium
- Voltage: 12/24Vdc
- Current: 12Vdc = 550 mA; 24Vdc = 275 mA
- Holding force: Up to 300 kg.
- Fail safe
- COM/NO/NC lock status signalling
For more details, please refer with our attached datasheet.
