400kg flush magnetic lock, monitored. 12/24Vdc.
CDVI, V4ER/M400M, Monitored, Up to 400kg holding force
- Brand:CDVI
- Product Code:V4ER
- Availability:Please Call or Email Us to Check Availability
CDVI, V4ER (M400M), Monitored, Up to 400kg holding force

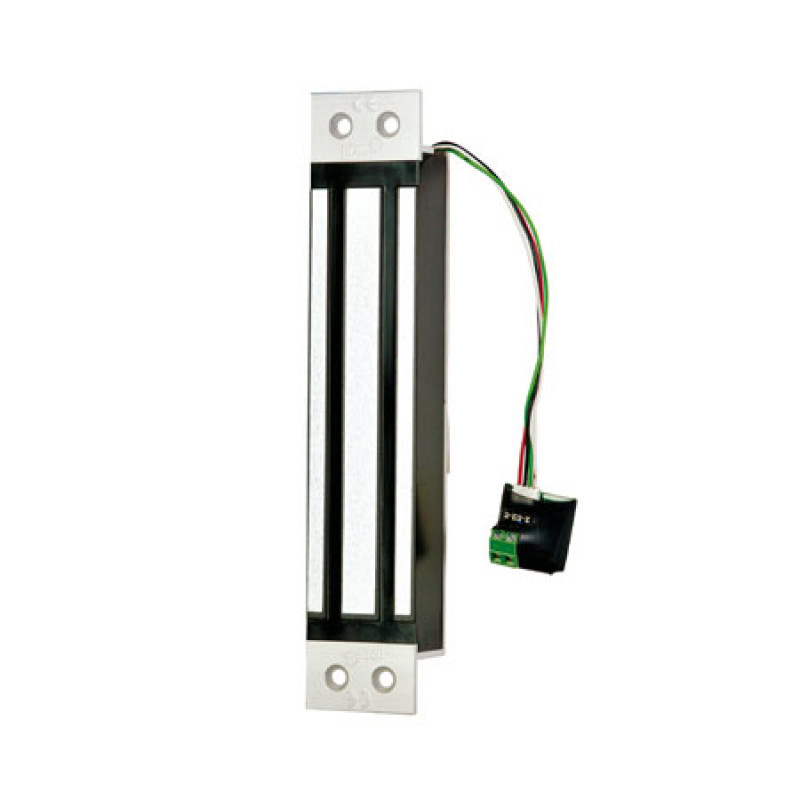

V4ER/M400M - The M400M is a mortice magnetic lock with a holding force of 400kg. Similar to the M300M, the unit is 12/24Vdc selectable, and is usually installed within a transom housing to provide locking of swing doors, but it provides additional holding force where 300kg is not considered sufficient. The M400M includes lock status monitoring.
Key Features:
- Up to 400kg holding force.
- Monitored
- No moving parts
- 12/24Vdc
- Ideal for sliding doors
Specifications:
- Dimensions: 228 x 44 x 29.5mm
- Satin anodised aluminium
- Voltage: 12/24Vdc
- Current: 12Vdc = 550 mA; 24Vdc = 275 mA
- Holding force: Up to 400 kg.
- Fail safe
- COM/NO/NC lock status signalling
For more details, please refer with our attached datasheet.
