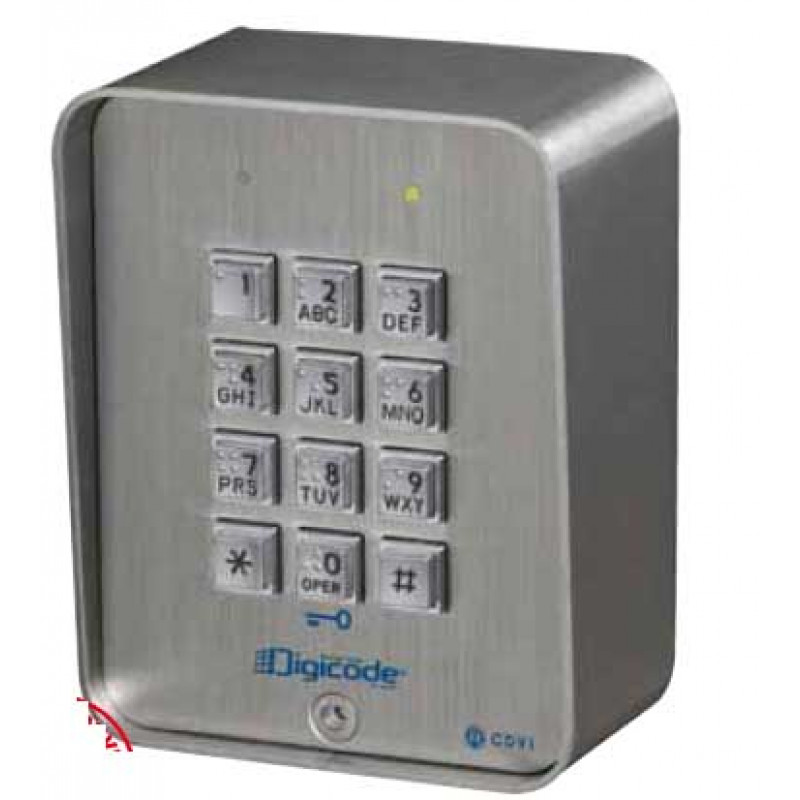

CDVI, CBB, High Grade Stainless Steel Keypad for 100 Users, IP54 with 5yrs Warranty

CDVI, High Grade Stainless Steel Keypad for 100 Users, IP54 with 5yrs Warranty [CBB]

Braille keys assist the partially sighted, the option to allow users to change their own codes and 3 relays as  standard increase the flexibility of the product.

Key features:

• High grade stainless steel
• Braille keys
• IP54
• Audible & visual feedback
• 100 user codes
• 4, 5 or 6 digit codes
• Trade button feature
• Programming via master code
• Torx® tamperproof screw
• 5 year warranty

Specifications:

• Dimensions: 120 x 100 x 65mm
• Environmental: -25°C to +70°C
• Operating voltage: 12V to 24VAC     12V to 48VDC
• Max current: 140mA
• IP rating: IP54
• Outputs: 3 relays
• Inputs: Request to exit,  Timer for trade function

For more details, please refer with our attached datasheet
