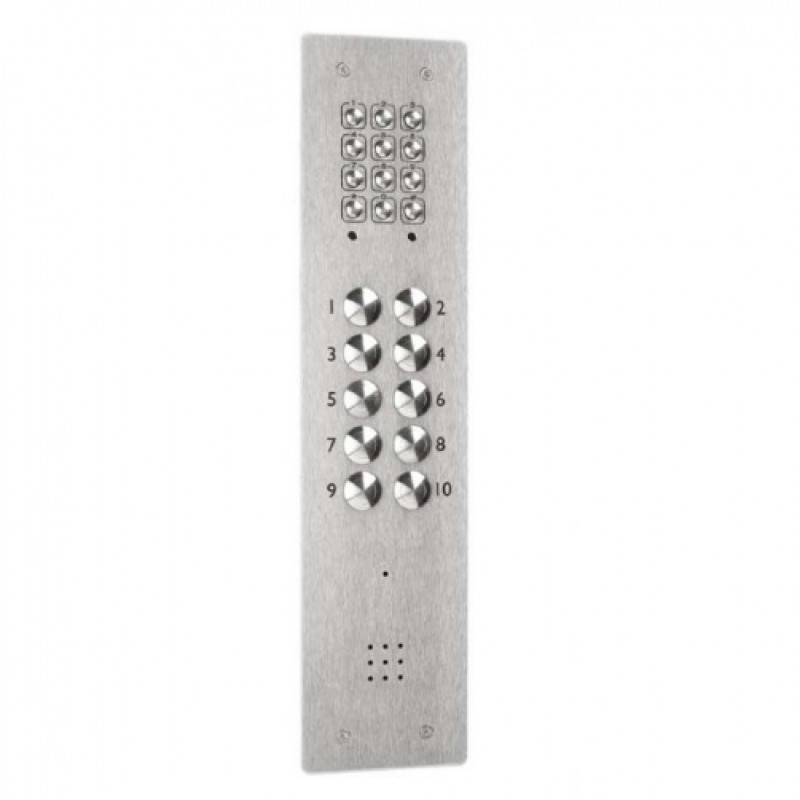

Bell (CP109-10/VRS) 10 Button Combined VR Panel - Surface

Bell (CP109-10/VRS) 10 Button Combined VR Panel - Surface

The Bell CS109 vandal resistant panel uses a more secure, built in keypad for access control with an independent controller, which will keep the entry point secure even if access to the keypad is gained. The controller is required for the keypad to function and is purchased separately.

Up to 10 access codes of 1-8 digits can be programmed, along with a wide range of programmable functions. LEDs on the keypad will indicate the system status to a user, simply green for open/ operating, and red will indicate an invalid code entry.

The entry panel uses the model 200 independent controller which controls access to one door via the stainless steel keypad. Programming is done by entering a security code and a sequence of codes at the keypad.

Made from 2.5 mm 316 grade stainless steel, the entry panel has 10 buttons and is surface mounted. Panels above 10 buttons will be vandal resistant which are more suitable for outdoor installation.

To add a tradesmen button simply add the model TRCS to your order which includes the TS2000 time clock. Note that adding a tradesmen button adds an extra button to your panel.

Key Features:

• Secure Programming via Keypad
• Time restricted access
• Non-volatile Memory
• Duress Operation
• Exit Facility
• Lock Timer

Technical Specification:

• BT specification CW1308 solid-core telephone cable required
