Bell, CS106-6F, 6 Station Combined Door Entry System - Flush

Bell, CS106-6F, 6 Station Combined Door Entry System - Flush

The CS106 are combined door entry and coded access systems utilising an economic C106 standalone keypad module. They can be considered where low level of security is deemed to be adequate. There are ten user access codes and a wide range of programmable functions.

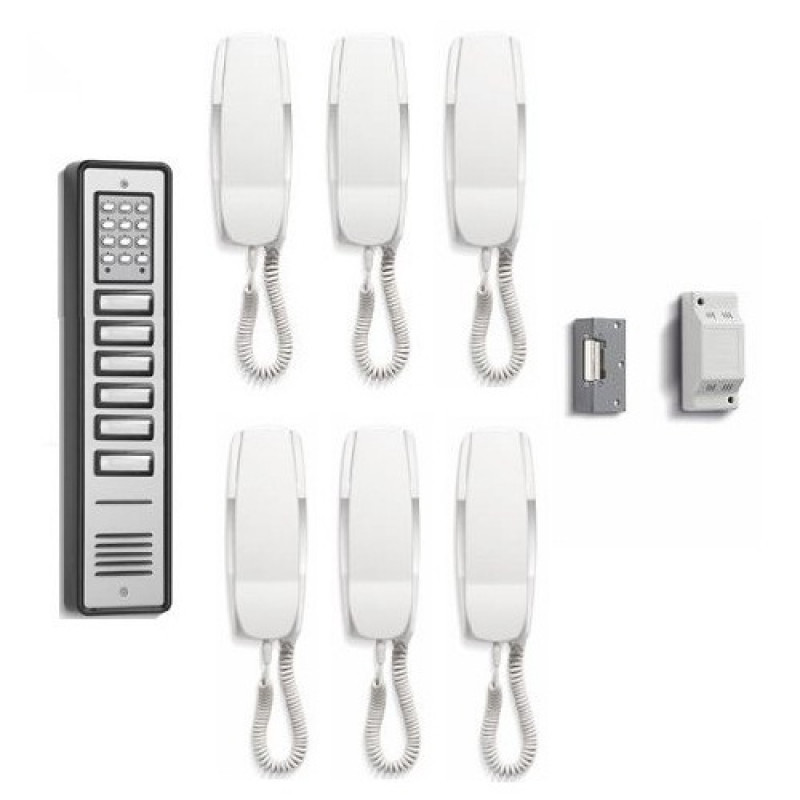

A CS106 series system comprises of:

• 1 x CS106-6 - surface mount aluminium, audio door entry panel, + keypad (6 Button)
• 1 x 212 - 12V AC 1 Amp. power supply
• 6 x 801 - audio telephone(s)
• 1 x 203 - rim lock release

1) Model 212 (12v AC)

A wall-mounting, double insulated, fused transformer included in basic audio door entry systems up to 10 stations. It has a nominal output of 12v AC @ 1Amp. Compliant with EN60950.

Dimensions: H = 140mm, W = 60mm, D = 53mm

2) 801 - Audio Telephone(S)

The model 801 is Bell Systems original door entry telephone.The 801 telephone continues to be the most popular in the UK market owing to its exceptional reliability and economical price.The model 801 telephone operates from both12v AC or 12v DC and is included in the standard model 900 and VRK audio door entry systems as well as the CS and CSP series of combined keypad and proximity door entry systems.

A 203 Rim Lock Release as a Standard.
