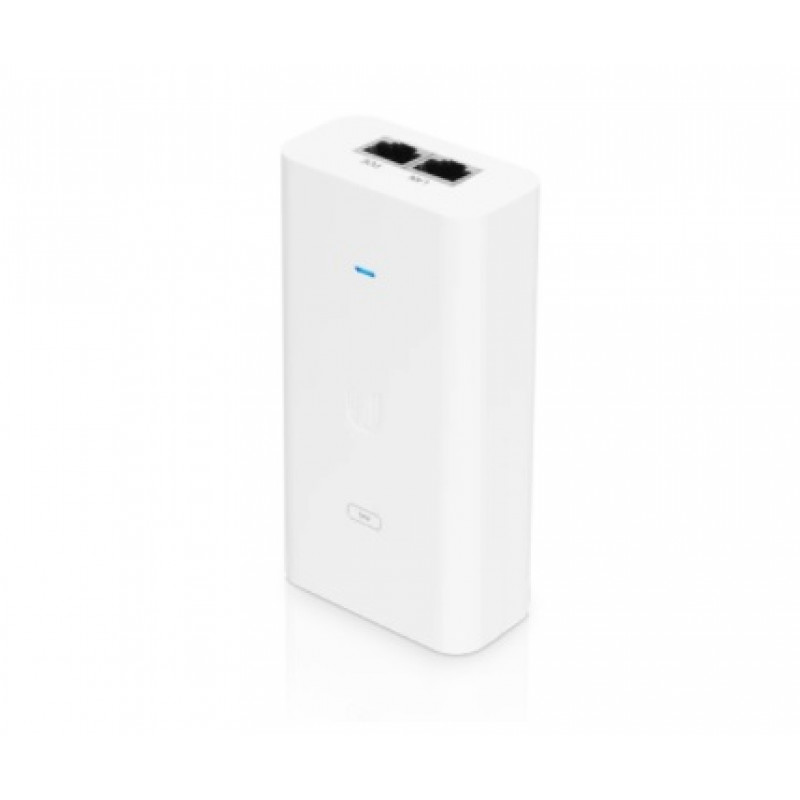

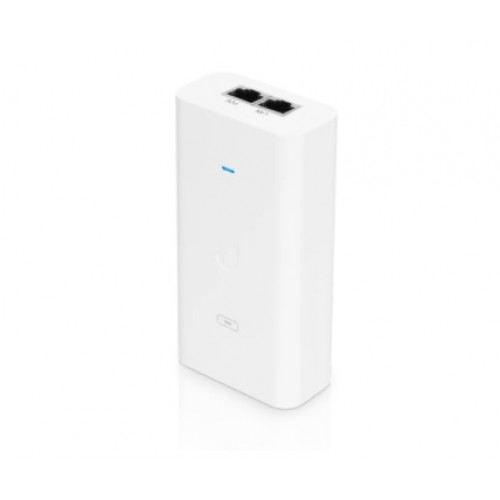

UniFi, POE-54V-80W, 54v, 1.5A Giga POE Injector

UniFi, POE-54V-80W, 54v, 1.5A Giga POE Injector

POE-54V-80W is EdgePoint Giga PoE Injector, 54V 80W. Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices. Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Key Features:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground.

Specifications:

• Dimensions - 123 x 65 x 34 mm (4.84 × 2.56 × 1.34”)
• Output Voltage - 54VDC @ 1.5A
• LAN Activity Indicator - No
• Gigabit LAN Port - Yes
• Remote Reset Capability - No
• Reset Button - No
• Rated Voltage - 100-240VAC @ 50/60Hz
• Input Current - 0.8A @ 120VAC, 0.4A @ 240VAC
• Inrush Current - <80A Peak @ 120VAC, <120A Peak @ 230VAC
• Efficiency - 0.87
• Output Ripple - 1% Max.
• Switching Frequency - 100 kHz Max.
• Line Regulation - ≤ 3%
• Load Regulation - ≤ 5%
• 4-Pair Powering Pins - 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
• Operating Temperature - 0 to 40° C (32 to 104° F)
• Storage Temperature - -30 to 70°C (-22 to 158° F)
• Operating Humidity - 35 to 95% Noncondensing
• AC Connector - IEC-320 C6
• Data IN / POE - RJ45 Shielded Socket
• Surge Protection - Difference and Common Mode
• Clamping Protection - 11V Data, 60V Power
• Max. Surge Discharge - 1500A (8/20 μs) Power
• Peak Pulse Current - 36A (10/1000 μs) Data
• Shunt Capacitance - <5 pF data
• Response Time - <1 ns
• Certifications - CE, FCC, IC, UL.

For more details, please refer with our attached datasheet.
