CQR, BCORI/COV/WBB, External Sounders - Horizontal Orion Cover with Blue Lens (White)
- Brand:CQR
- Product Code:BCORI/COV/WBB
- Availability:Please Call or Email to Checkout

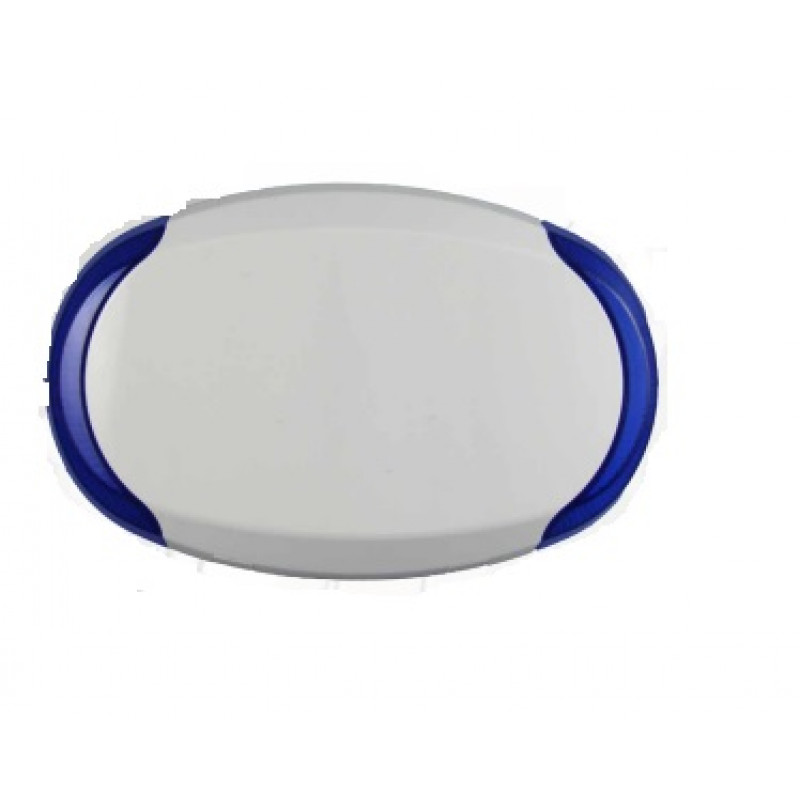

External Sounders - Horizontal Orion Cover with Blue Lens (White) [BCORI/COV/WBB]
The Orion is a low profile external sounder which is available in two versions, Vertical. The Cover is also made from 3mm polycarbonate and comes complete with either one or two lenses depending on the version. Two special hinged flush fitting covers conceal the cover screws.An internal 1.5mm polycarbonate cover further protects the electronics. Access to the 45º terminals is gained via a small clip-on cover with guides to aid the wiring. The horizontal version has two strobes. A three way tamper switch protects the sounder, providing detection against removal from wall, cover opening and cover screw removal.
Key Features:
- Full polycarbonate dual skin construction
- Twin cover screws
- Trigger wire monitoring option
- Green Tamper LED
- Red Hold-off LED
Specifications:
- Backplate: 3mm Poly-carbonate
- Inner Cover: 1.5mm Poly-carbonate
- Cover: 3mm Poly-carbonate
- Tamper Protection: Wall, Cover, Screw
- Strobe type: Xenon
- No. of strobes: Horizontal: 2
- Strobe current: 120mA
- Trigger wire monitoring: Optional
- Standards: EN50131-1 Grade 3 PD6662:2004
- Size: Horizontal: W:328mm H:200mm D:65mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
