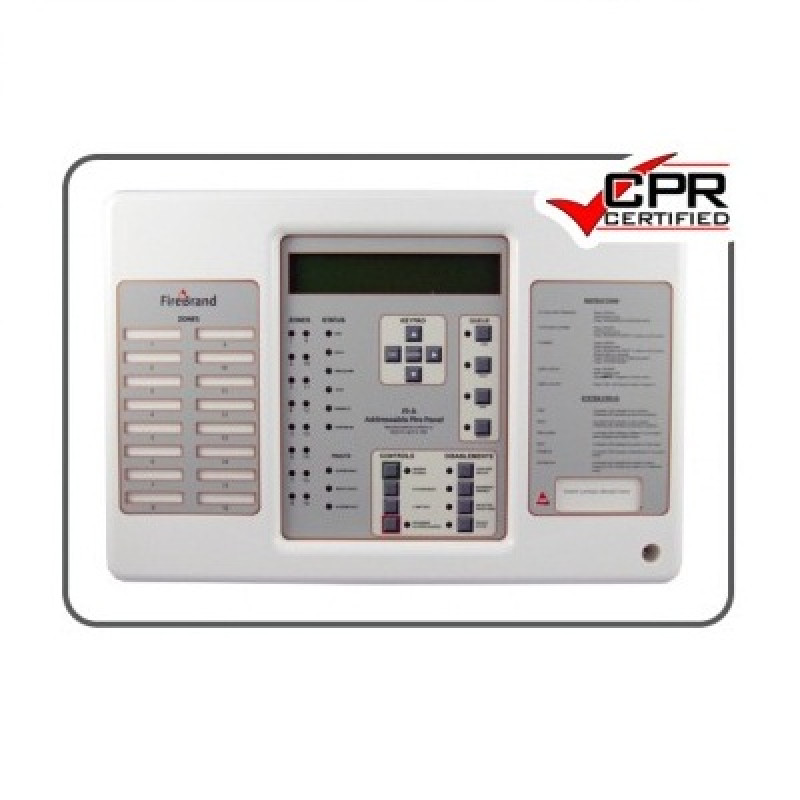

CQR, FI/PN/A/2L, FireBrand 2 Loop Addressable Fire Panel

CQR, FI/PN/A/2L, FireBrand 2 Loop Addressable Fire Panel

The FireBrand 2 loop analogue addressable control panel provides a cost effective solution for small to medium size installations. The panel can support up to 125 addressable devices on each loop which are compatible with various manufacturers protocols.

Using FireBrand’s advanced communications mechanism up to 32 individually addressed Loop sounders can be connected to each of the panels detection Loop. The panel also supports Shadow sounders and Firebrands new Vulcan 2 addressable Sounder-Beacon-Isolator along with a range of other Interface devices.

The panel is equipped with a backlit LCD display of 4 rows each with 40 characters to give clear textual indications of Fire / Fault occurrences to the end user.

There are also 16 Zone Fire LED indicators. Mini-repeaters can be connected via an RS422/RS485, Fibre Optic or TCP/IP interface to facilitate remote display and control of the system. Automatic Device detection at start up reduces time spent at the commissioning stage. In Installation mode the panel detects and recognises addressed and connected devices with the system being fully operational in less than two minutes.

Key Features:

• 125 Addressable devices per loop
• 16 Zone LED display (32 on NET panel)
• 384 Programmable zones
• 512 Programmable I/O & sounder groups
• Multiple protocols available
• Multiple language support

For more details, please refer with our attached datasheet.
