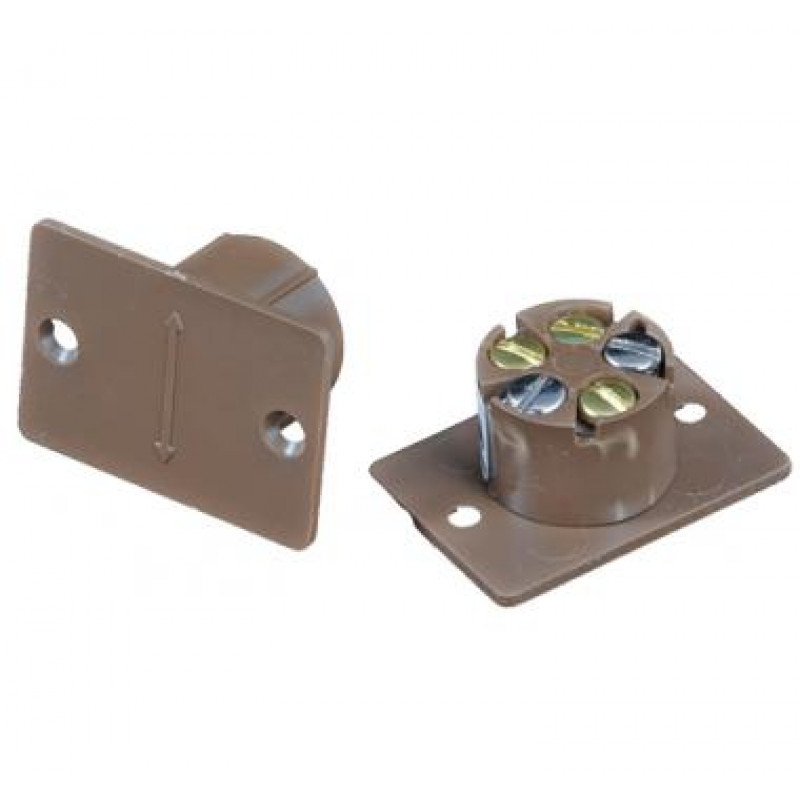

CQR, FC505/BR, F.Contact 5T Twin Rectangular Brown

CQR, FC505/BR, F.Contact 5T Twin Rectangular Brown

  • Brand:CQR
  • Product Code:FC505/BR
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CQR, FC505/BR, F.Contact 5T Twin Rectangular Brown

The FC505/BR is suitable for use in Ungraded and Grade 1 systems. These contacts meet the minimum requirements for Grade 1 Systems; they have no tamper and are not required to be potted or sealed and have no magnet detection.Magnetic contacts which can be flush fitted for maximum discretion. The range includes plastic and metal fronted types, some of which are prewired for easy installation.

Key Features:

  • Quick Fit Flush Contact
  • Body 19(dia) x 15 - Face plate 35 x 22mm
  • 5 Terminal
  • Operating Gap: 23mm
  • EN50131-2-6 Grade 1
  • Environmental Class: II.

Specifications:

  • Connections: 5
  • Reed Switches: 1
  • Pull-in Gap: 23mm
  • Material: Polystyrene
  • Size mm: 19 Dia. x 15, 35 x 22
  • Contact Form: SPST form A
  • Voltage Range: 1-50vDC
  • Switching Current: 500mA
  • Contact Material: Rhodium
  • Colours: Brown.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
