CQR, FC503/WH/G2/B, Flush Contact Wh Type B 4K7 SW 2K2 TAMP

CQR, FC503/WH/G2/B, Flush Contact Wh Type B 4K7 SW 2K2 TAMP

  • Brand:CQR
  • Product Code:FC503/WH/G2/B
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CQR, FC503/WH/G2/B, Flush Contact Wh Type B 4K7 SW 2K2 TAMP

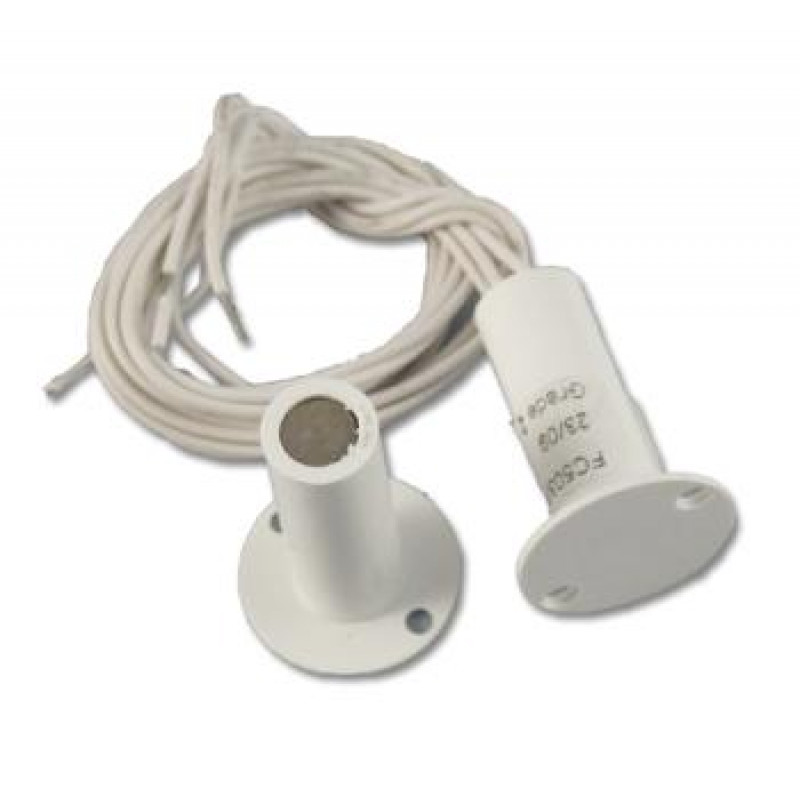

The FC503/WH/G2/B are Grade 2 White Flush Door Contact Type B Resistor used for Scantronic, Cooper, Pyronix PCX, Texecom, Castle-Care Tec G3+ and suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.Magnetic contacts which can be flush fitted for maximum discretion. The range includes plastic and metal fronted types, some of which are prewired for easy installation.

Key Features:

  • 4 Core Pre Wired
  • Operating Gap - 15mm
  • Double Pole or Pre-resistored

Specifications:

  • Connections: 4 wire
  • Reed Switches: 1
  • Pull-in Gap: 15mm
  • Material: Polystyrene
  • Size mm: 9.5 Dia x 25
  • Contact Form: SPST form A
  • Voltage Range: 1-50v DC
  • Switching Current: 500mA
  • Contact Material: Rhodium
  • Colours: White
  • Resistor Type: B
  • Switch: 4K7 Ohms
  • Tamper: 2K2 Ohms.
