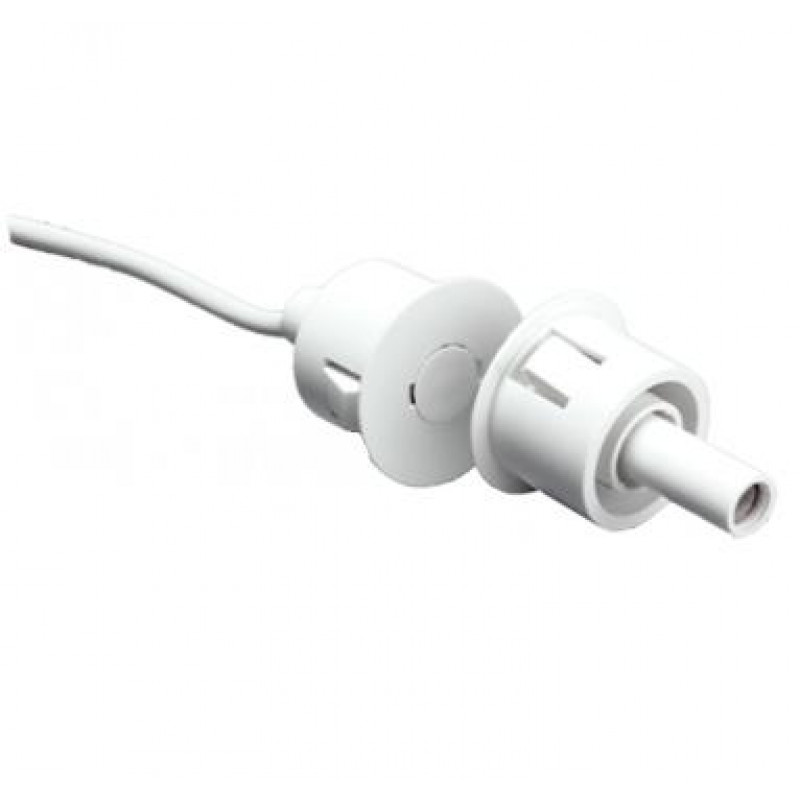

CQR, FC620/WH, Flush Contact 4 Core White

CQR, FC620/WH, Flush Contact 4 Core White

  • Brand:CQR
  • Product Code:FC620/WH
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CQR, FC620/WH, Flush Contact 4 Core White

The FC620/WH Grade 2 Flush Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.Magnetic contacts which can be flush fitted for maximum discretion. The range includes plastic and metal fronted types, some of which are prewired for easy installation

Key Features:

  • Flush pencil type contact
  • 4 core pre-wired
  • Operating Gap: 15mm
  • Collar for metal door
  • EN50131-2-6 Grade 2
  • Environmental Class: II

Specifications:

  • Connections: 3m 4Core
  • Reed Switches: 1
  • Pull-in Gap: 15mm
  • Material: Polystyrene
  • Contact size mm: 9.5 Dia x 33
  • Adaptor size mm: 25 Dia x 20
  • Contact Form: SPST form A
  • Voltage Range: 1-50v DC
  • Switching Current: 500mA
  • Contact Material: Rhodium
  • Colours: White.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
