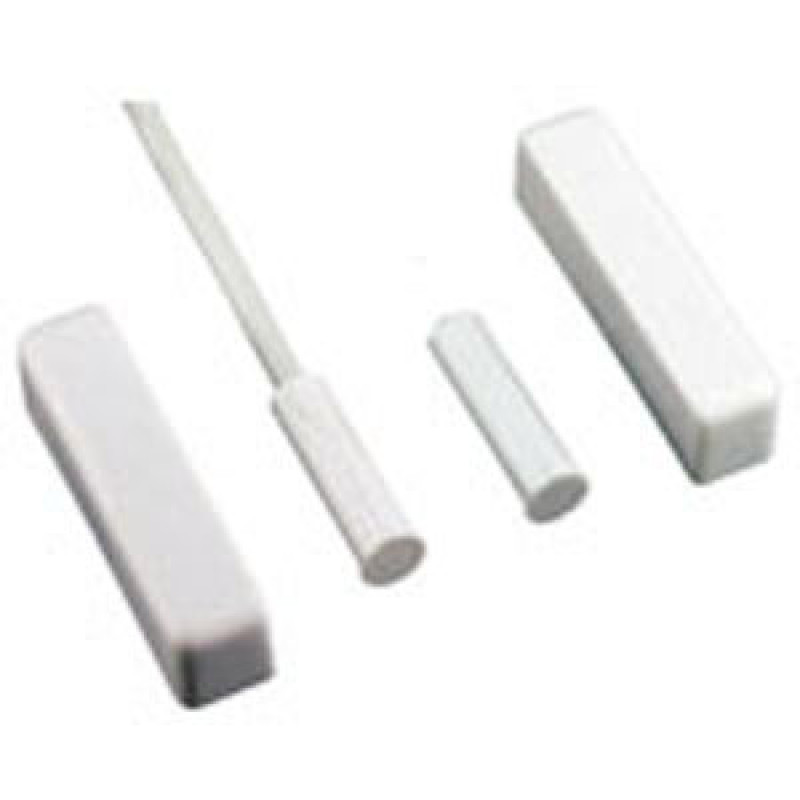

CQR, FS610/WH, G2 Flush Door Contact C/W Surface Adaptor Kit - White
- Brand:CQR
- Product Code:FS610/WH
- Availability:Please Call or Email to Checkout
CQR, FS610/WH, G2 Flush Door Contact C/W Surface Adaptor Kit - White
The FS610/WH Grade 2 Flush Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.Magnetic contacts which can be flush fitted for maximum discretion. The range includes plastic and metal fronted types, some of which are prewired for easy installation.
Key Features:
- Flush contact with surface adaptor
- 6(dia) x 26mm
- 4 core pre-wired
- Operating Gap - 15mm
- EN50131-2-6 Grade 2
- Environmental Class: II.
Specifications:
- Connections: 3m 4Core
- Reed Switches: 1
- Pull-in Gap: 15mm
- Material: Polystyrene
- Size mm: 6 Dia x 26
- Contact Form: SPST form A
- Voltage Range: 1-50v DC
- Switching Current: 500mA
- Contact Material: Rhodium
- Colours: White.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
