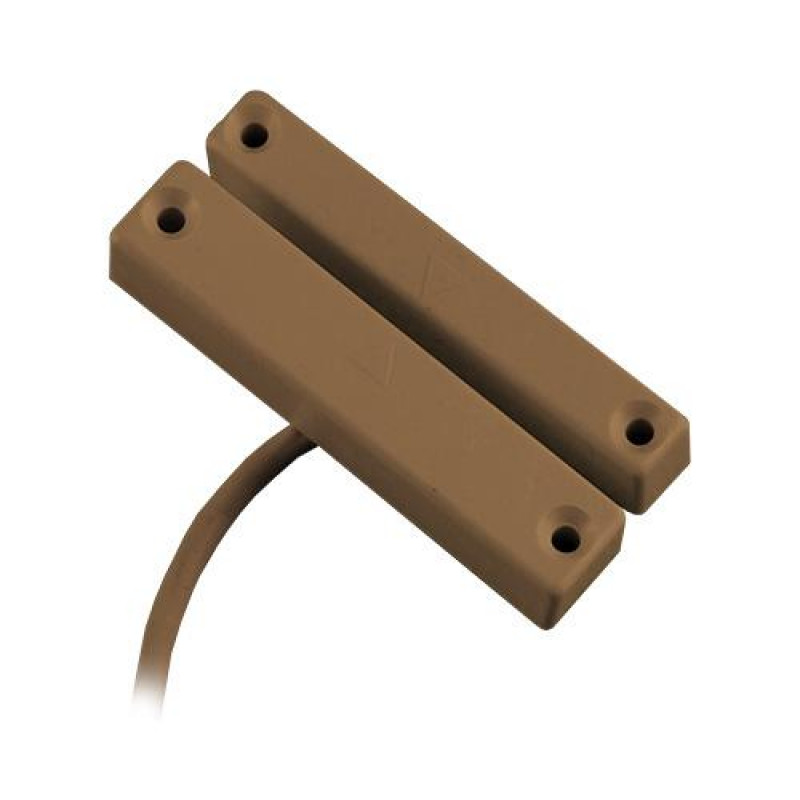

CQR, SC513/BR/4C, 1 Reed 4 Core Surface Contact Brown Grade 2

CQR, SC513/BR/4C, 1 Reed 4 Core Surface Contact Brown Grade 2

  • Brand:CQR
  • Product Code:SC513/BR/4C
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CQR, SC513/BR/4C, 1 Reed 4 Core Surface Contact Brown Grade 2

The SC513/BR/4C Grade2 Surface Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.

Key Features:

  • Pre-wired
  • Operating Gap - 20mm
  • Pre-resistored

Specifications:

  • Connections: 1m 4Core
  • Reed Switches: 1
  • Pull-in Gap: 20mm
  • Material: Polystyrene
  • Size mm: 65 x 13.5 x 13
  • Contact Form: SPST form A
  • Voltage Range: 1-50v DC
  • Switching Current: 500mA
  • Contact Material: Rhodium
  • Colours: Brown.
