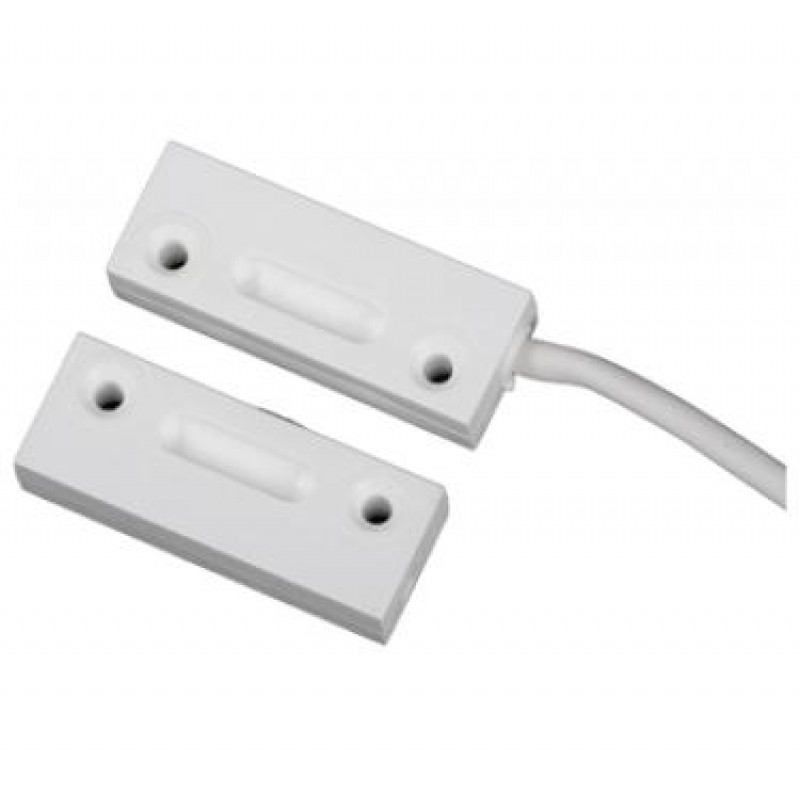

CQR, SC525/WH/4C, 1 Reed 4 Core Surface Contact White G 2

CQR, SC525/WH/4C, 1 Reed 4 Core Surface Contact White G 2

  • Brand:CQR
  • Product Code:SC525/WH/4C
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CQR, SC525/WH/4C, 1 Reed 4 Core Surface Contact White G 2

The SC525/WH/4C Grade 2 Patio Surface Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.

Key Features:

  • Patio surface contact
  • 38 x 15 x 8mm
  • 4 Core pre-wired
  • Operating Gap - 20mm
  • EN50131-2-6 Grade 2
  • Environmental Class: II

Specifications:

  • Connections: 1m 4Core
  • Reed Switches: 1
  • Pull-in Gap: 20mm
  • Material: Polystyrene
  • Contact Form: SPST form A
  • Voltage Range: 1-50v DC
  • Switching Current: 500mA
  • Contact Material: Rhodium
  • Colours: White.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
