CQR, SC555/AL/4CX, 1 Reed 4 Core G 2 Surf Cont Alum X
- Brand:CQR
- Product Code:SC555/AL/4CX
- Availability:Please Call or Email to Checkout

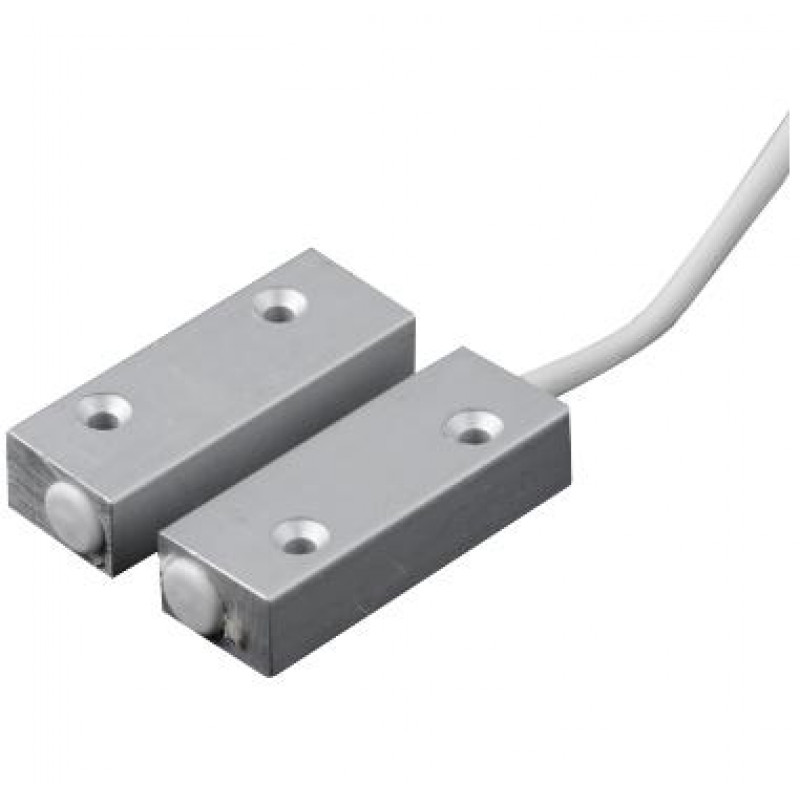

CQR, SC555/AL/4CX, 1 Reed 4 Core G 2 Surf Cont Alum X
The SC555/AL/4CX Grade 2 Aluminium Surface Door Contact are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These contacts are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.A range of contacts in plastic and aluminium which can be surface mounted and which will suit most domestic and commercial installations.
Key Features:
- Aluminium surface contact
- 4 Core pre-wired
- Operating Gap - 20mm
- EN50131-2-6 Grade 2
- Environmental Class: II
Specifications:
- Connections: 1m 4Core
- Reed Switches: 1
- Pull-in Gap: 20mm
- Material: Aluminium
- Size mm: 40 x 15 x 10.
- Contact Form: SPST form A
- Voltage Range: 1-50v DC
- Switching Current: 500mA
- Contact Material: Rhodium
- Colours: Aluminium.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
