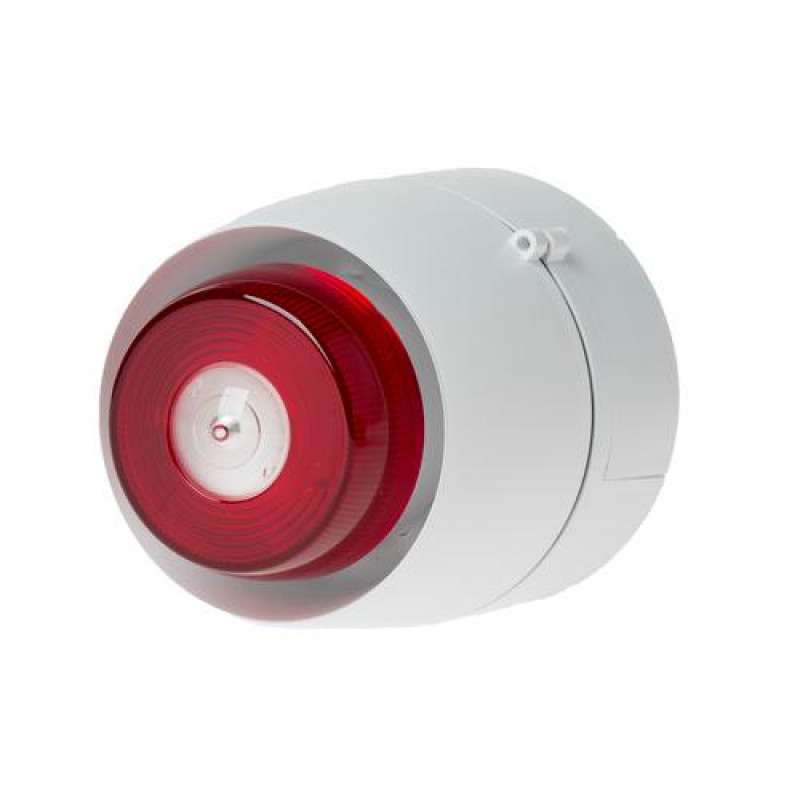

Cranford Controls, CC-512-203, VXB-32EVAD EN54-3 and 23, Shallow Base - White Body, Red Flash

Cranford Controls, CC-512-203, VXB-32EVAD EN54-3 and 23, Shallow Base - White Body, Red Flash

(1 Week Delivery Timeline Expected for this Item)

The VXB 24Vdc LED beacon is part of the VTG family of products designed for use with conventional fire alarm systems, including two wire (SAV-WIRE®) and other general 24Vdc applications. The beacon has been designed for maximum all-round visibility, coupled with low power consumption, utilising an array of energy-efficient LEDs.

The VXB & VTB EN54 part 3 & 23 approved beacon and sounder/VAD beacon are part of the VTG/VTB family of products. The sounder/VAD beacon, like all the VTB family of products, comes with 32 selectable tones as standard and has the option of a changeover facility from Alert to Evacuation tone, when installed using 3 core cable.

The Visual Alarm Device (VAD) are available in white or red flash and have been approved at 1 Hz flash rate to EN54-23, at C-3-8(White flash) and C-3-7(Red flash) coverage range. The sounder and VAD beacon functions are fully synchronised and the sounder/VAD function has the ability to operate as a beacon only.

Key Features:

• Approved to EN54-3(Sounder) and EN54-23 (VAD Beacon)
• White flash(C-3-8), red flash(C-3-7) options available.
• 0.5Hz flash rate available via the Dil switch
• 32 tones plus a selectable override tone
• Shallow base IP21C and deep base IP33C versions
• Deep base variants independently certified to IP65.
• Unique twist and lock bayonet mounting system
• Removable cover on deep base for surface wiring
• Features base locking system as standard
• Body colour options available – red and white

For more details, please refer with our attached datasheet.
