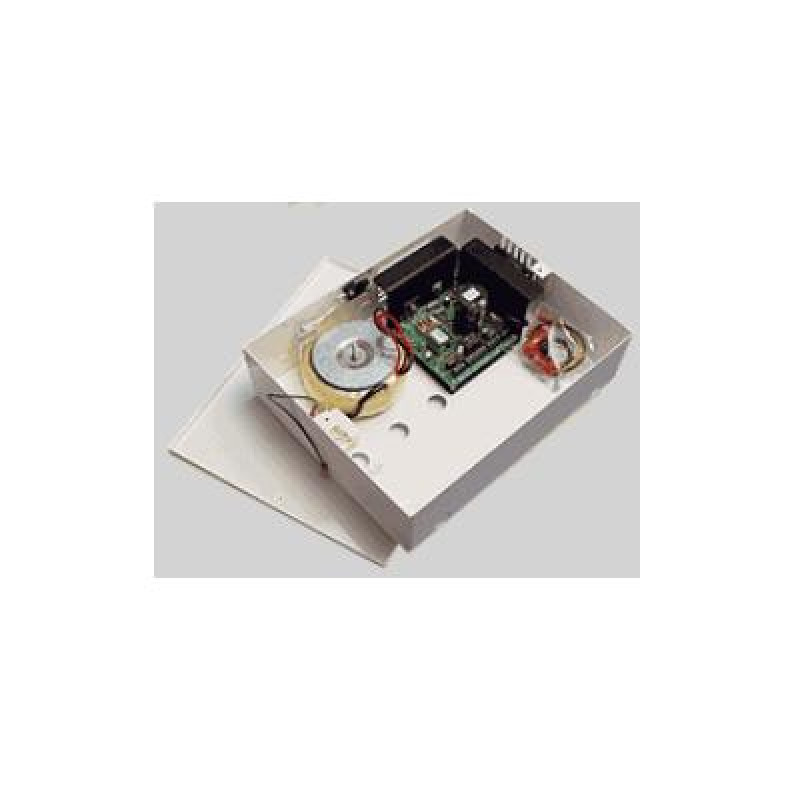

Dantech, DA448, 1 x 5Amp 12V DC (13.7) or 1 X 2.5Amp 24V DC (27.4)

DA448, 1 x 5Amp 12V DC(13.7) or 1 X 2.5Amp 24V DC(27.4) With Space for Two 7Ah Batteries

A power supply that will provide either 5Amp 12V DC (13.7) or 2.5Amp 24V DC (27.4). The PSU provide either a 12V DC (13.7) or a 24V DC (27.4) output. The changing of output voltage is controlled by a simple selector plug. The unit provide two separate output terminals and can house and charge two 12V 7Ah VRLA batteries. Typical uses are for powering door access controllers, electric releases and maglocks. They are equipped with separate SPCO (Single Pole Change Over) contacts for 'MAINS FAIL' monitoring. There is also an undedicated SPCO 'universal' relay that can be driven from a 12V or 24V DC supply. A typical use for this relay would be interfacing a fire panel with the power supply to de-power maglocks in the event of a fire condition.

Power supplies have a green LED “mains on” indicator and include a spares bag containing battery leads, cable entry gland, fixing screws and wall plugs. All metal cases are finished in a white gloss powder coating.

Specifications:

• Current (Amps) - 12V - 5, 24V - 2.5
• Voltage (nominal) - 13.7V OR 27.4V
• Recommended Battery Size - 7Ah 2 x 7Ah
• Independent Relay - SPCO
• Mains Fail Signalling - SPCO
• Mains Fail Indication - (YES)LED
• Tamper Switch - YES
• Fan - NO
• Weight (Kg) - 4.200
• Dimensions W x H x D - 320 x 255 x 90

For more details, please refer with our attached datasheet.
