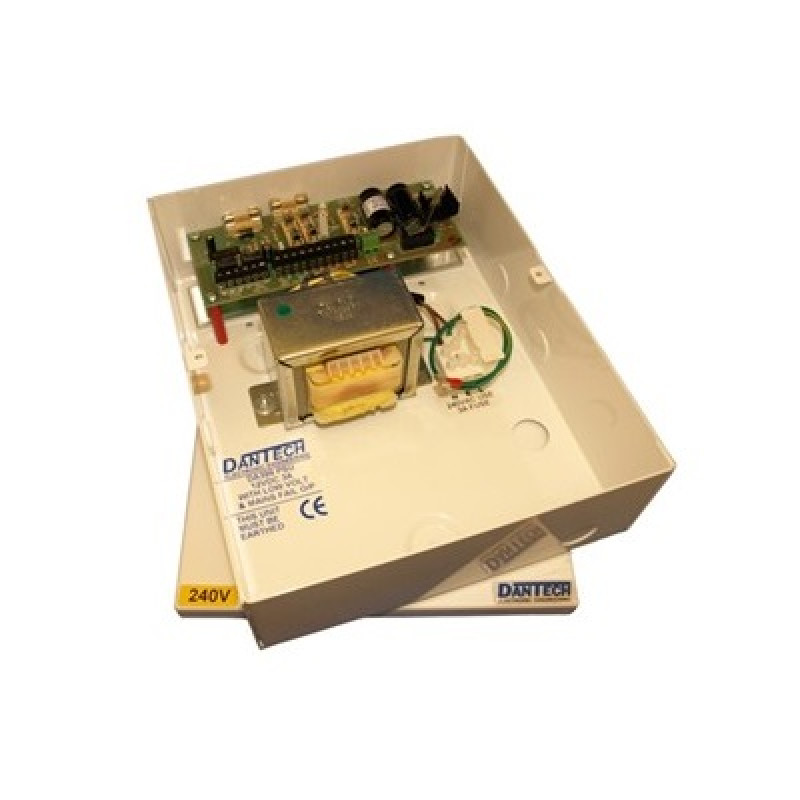

Dantech, DA399, 4 x 12V DC (13.7V) 750mA PSU Individually Fused Outputs

Dantech, DA399, 4 x 12V DC (13.7V) 750mA Power Supply Individually Fused Metal Cased

A 3 Amp 12V DC (13.7) power supply with 4 individually fused outputs, which will house and charge one VRLA battery up to 7Ah capacity. Unit comes with SPCO contacts for indicating mains fail and low voltage states and also has a tamper microswitch. Steel cased.

Specifications:

• Supply Voltage: 240V AC 50Hz
• Current Consumption: < 110VA at full load
• Colour: White
• Size in mm (W x H x D): 210 x 260 x 80
• Weight in Kg: 3.625
• Packed Size in mm (W x H x D): 218 x 280 x 83
• Packed Weight in Kg: 3.800
• Case Material: 1.2 mm Powder coated Mild Steel
• Operating Temperature: -10°C to +40°C
• Storage Temperature: -20°C to +50°C
• Operating Relative Humidity: up to 95% non condensing
• MTBF: 50,000 hours
• CE approved: Yes
• Output Voltage: 12V DC (nominal 13.7V DC)
• Current: 3A max total
• Mains Fail Indication: Yes
• Low Volts Indication: Yes
• Recommended Battery Size: 7Ah
• Tamper Switch: Yes

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
