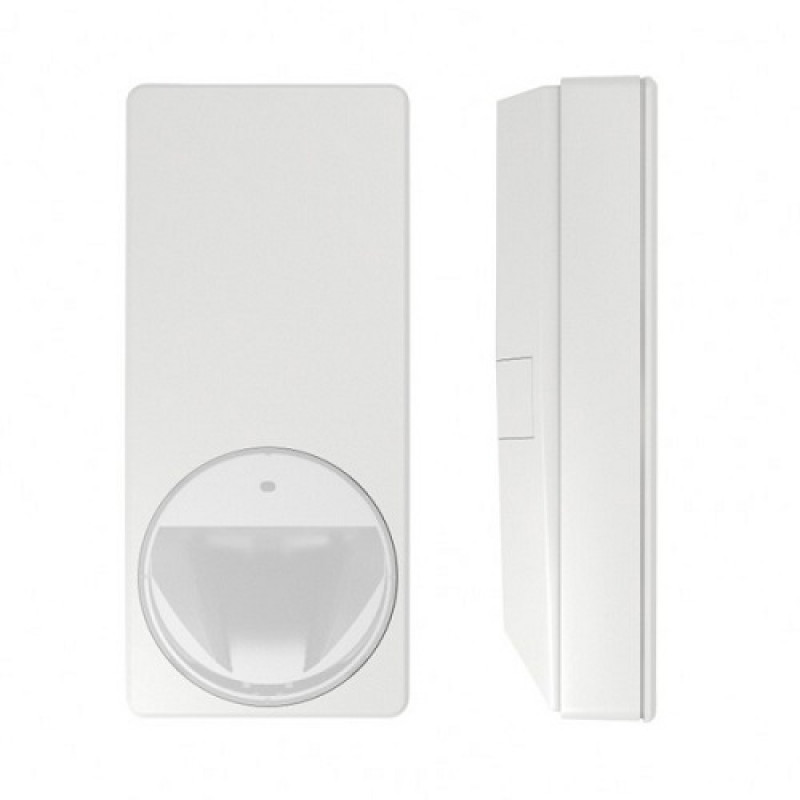

V54531-F117-A100, Dual AM Detector 10.587GHz
- Brand:Vanderbilt
- Product Code:V54531-F117-A100
- Availability:Please Call or Email Us to Check Availability
V54531-F117-A100, Dual AM Detector 10.587GHz
MAGIC motion detector PDM-IXE12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity.
Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Technical Specification:
| Optical system: | MAGIC mirror |
| Dimensions (W x H x D): | 57 x 128 x 32 |
| Walking speed: | 0,1 ... 4,0 m/s / 0,1 ... 4,0 m/s |
| Current consumption: | 6.3 mA (rms) 10.5 mA (max peak) |
| Sensitivity evaluation mode: | 6 settings |
| Pet immunity: | yes (option) |
| Microwave (MW): | 10.587 GHz |
| Detection characteristics / range: | Volumetric / 12 m |
| Storage temperature: | - 20° ... + 60°C |
| Housing protection (EN 60529): | IP41 / IK02 |
| Operating temperature: | - 10° ... + 55°C |
| EOL resistor: | RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW |
| Set/unset input: | LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ |
| Walk test input: | LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ |
| Outputs: | 30 VDC / 100 mA, NC |
| Supply voltage: | 9 ... 16 VDC (12 V nom.) |
| Colour: | RAL9003 |
| Air humidity (EN 60721): | < 95% RH, non-condensing |
| Approval: | NF&A2P Grade 3 + RTC (pending) EN50131-2-4 grade 3 |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
