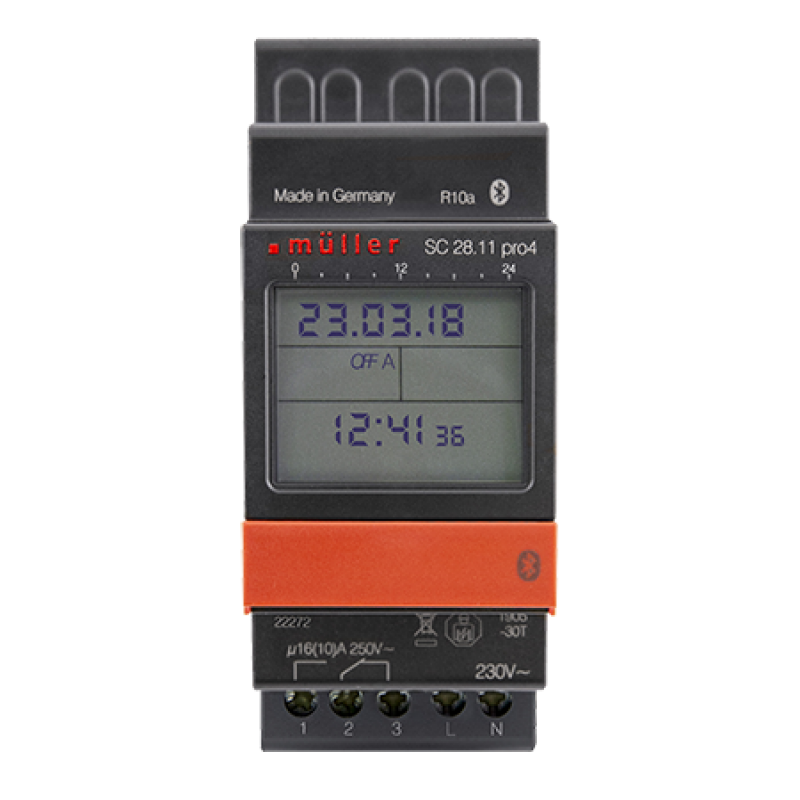

ESP (SC2811PRO4) Standard Bluetooth 2 Module 1 Channel, 7 day Timer, 100 Operations
- Brand:ESP
- Product Code:SC2811PRO4
- Availability:Please Call or Email Us to Check Availability
ESP (SC2811PRO4) STANDARD BLUETOOTH 2 MODULE 1 CHANNEL 7 DAY TIME SWITCH
- Daily and Weekly programming
- Switching capacity 16A per channel
- Zero-crossing, LED up to 600W
- Programmable via App (iOS and Android)
- 10 years battery reserve
Technical Specifications:
| Power Supply | 230V AC, 50/60Hz |
| Programming | 100 Operations |
| Display | LCD |
| Mounting | DIN |
| Current Rating | 16A |
| Switching Capacity | 10A Inductive@0.6pf Filament lamp 3,000W Halogen lamp 3,000W Fluorescent lamp uncompensated 2,600W Fluorescent lamp series compensated 2,600W Fluorescent lamp parallel compensated 1,300W Compact Fluorescent lamp 600W LED 230V AC 600W |
| Reserve | 10 years |
| Switching Functions | ON/OFF, Pulse, Cycle, Random, Extra On/Off, Permanent On/Off |
| Memory Locations | 100 |
| Minimum Interval | 1 min |
| Program Security | unlimited |
| Temperature Range | -30°C to +55°C |
| Enclosure | Self-extinguishing thermoplastic |
| Type of Protection | IP20 to DIN EN 60529 |
| Dimensions | 90 x 36 x 63 mm |
For more details on this product range, including part numbers, please refer to the datasheet below or contact us.
