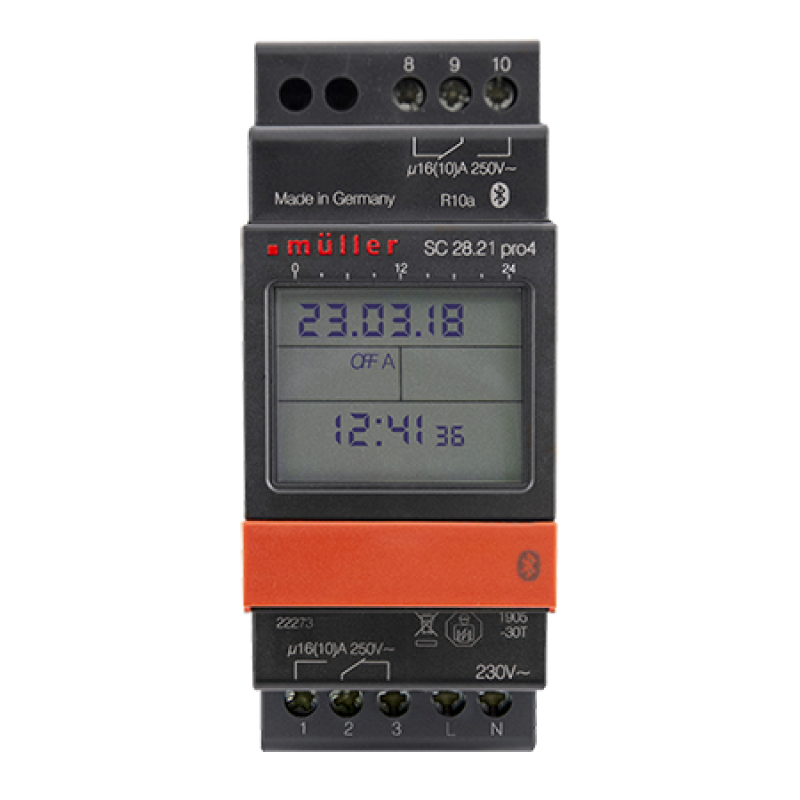

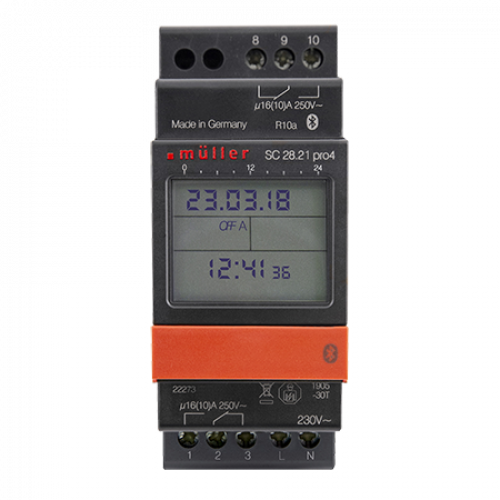

ESP (SC2821PRO4) Standard Bluetooth 2 Module 2 Channel, 7 day Timer, 100 Operations

ESP (SC2821PRO4) Standard Bluetooth 2 Module 2 Channel, 7 day Timer, 100 Operations

  • Brand:ESP
  • Product Code:SC2821PRO4
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


ESP (SC2821PRO4) STANDARD BLUETOOTH 2 MODULE 2 CHANNEL 7 DAY TIME SWITCH

  • Daily and Weekly programming
  • Switching capacity 16A per channel
  • Zero-crossing, LED up to 600W
  • Programmable via App (iOS and Android)
  • 10 years battery reserve

Technical Specifications:

Power Supply 230V AC, 50/60Hz
Programming 100 Operations
Display LCD
Mounting DIN
Current Rating 16A
Switching Capacity 10A Inductive@0.6pf Filament lamp 3,000W Halogen lamp 3,000W Fluorescent lamp uncompensated 2,600W Fluorescent lamp series compensated 2,600W Fluorescent lamp parallel compensated 1,300W Compact Fluorescent lamp 600W LED 230V AC 600W
Reserve 10 years
Switching Functions ON/OFF, Pulse, Cycle, Random, Extra On/Off, Permanent On/Off
Memory Locations 100
Minimum Interval 1 min
Program Security unlimited
Temperature Range -30°C to +55°C
Enclosure Self-extinguishing thermoplastic
Type of Protection IP20 to DIN EN 60529
Dimensions 90 x 36 x 63 mm

For more details on this product range, including part numbers, please refer to the datasheet below or contact us.
