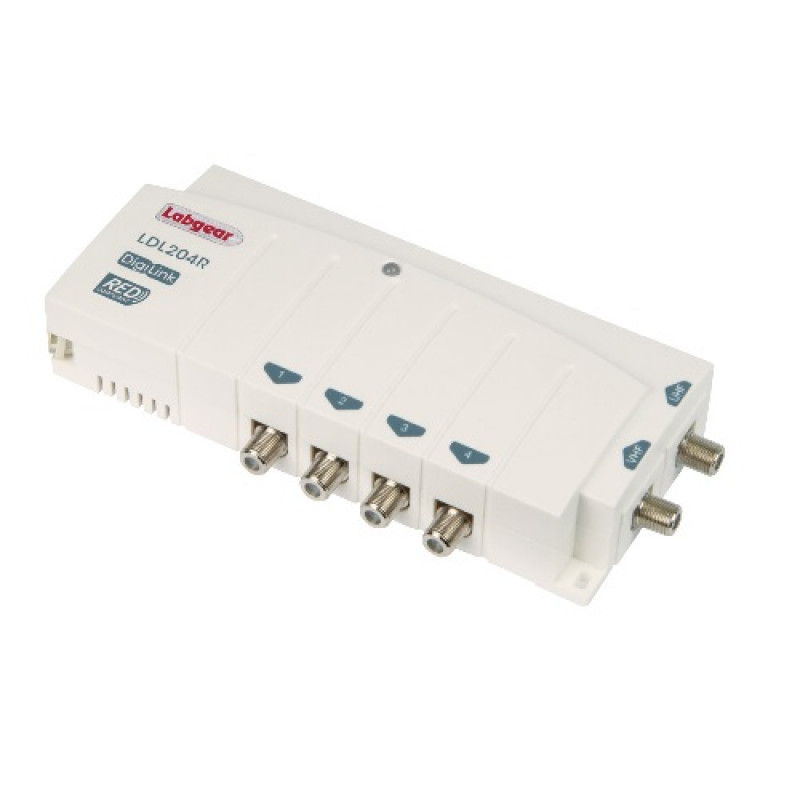

Labgear, LDL204R, 4 Out UHF/VHF DigiLink IR Bypass Amplifier
- Brand:Philex
- Product Code:LDL204R
- Availability:Please Call or Email Us to Check Availability
Labgear, LDL204R, 4 Out UHF/VHF DigiLink IR Bypass Amplifier
LDL204R – 2-in, 4-out, mains powered DigiLink amp
Key Features:
- Dual input amps, VHF 87-230MHz, UHF 470-790MHz
- Distribute signal from your digibox or *TV and radio aerial
- 9V DC on every output to power DigiLink eyes
- Return path for IR control
Specifications:
| Number of inputs | 2 |
| Number of outputs | 4 |
| Frequency range | 87-230 & 470-790MHz |
| Gain | 10dB |
| Noise Figure | Typ. <4dB |
| Max output level (IMA3 -60dB) | 90dBμV |
| Isolation between outlets | 20dB |
| Return path range | 5-30MHz |
| Return path gain | 6dB |
| Power for DigiLink eyes | 9V 15mA short circuit protected |
| RED, EMC and LVD | Compliant |
| Power required | 220-240V~50/60hz <3W |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
