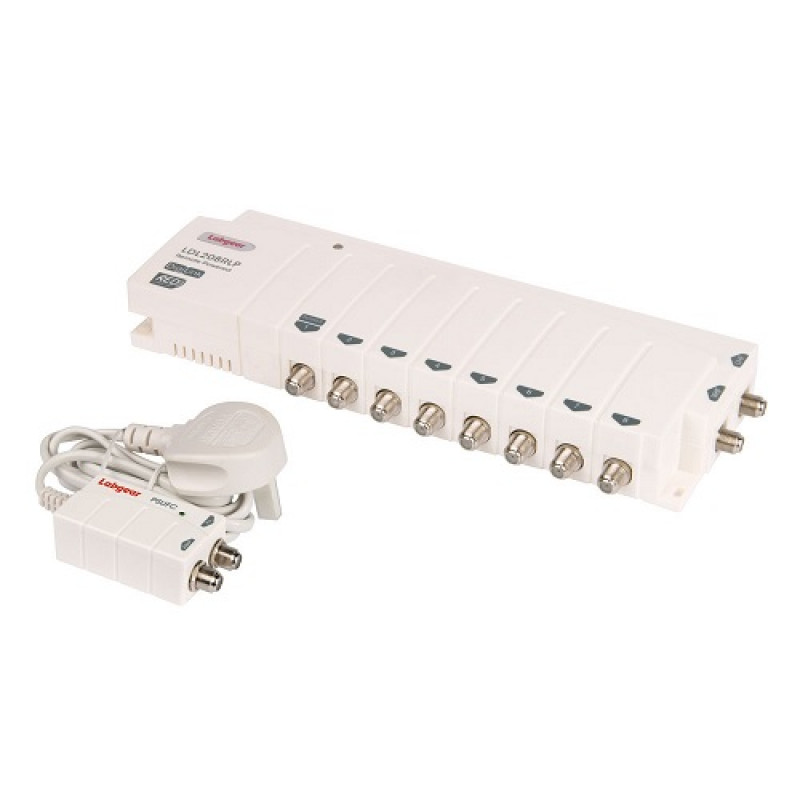

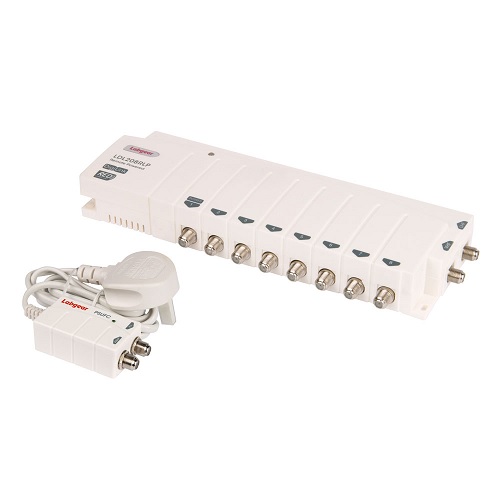

Labgear, LDL208RLP, 8 Out UHF/VHF DigiLink IR Bypass Amplifier
- Brand:Philex
- Product Code:LDL208RLP
- Availability:Please Call or Email to Checkout
Labgear, LDL208RLP, 8 Out UHF/VHF DigiLink IR Bypass Amplifier
LDL208RLP – 2-in, 8-out DigiLink amp with separate PSU
Ideal for signal distribution from a location that doesn’t have mains power. Fully DigiLink compatible.
Key Features:
- Power from any room connected to output 1
- Dual input amps,VHF 87-230MHz,UHF 470-790MHz
- Designed to distribute signal from your digibox
- 9V DC on every output to power DigiLink eyes
Specifications:
| Number of inputs | 2 |
| Number of outputs | 8 |
| Frequency range | 87-230 & 470-790MHz |
| Gain | 10dB |
| Noise Figure | Typ. <4dB |
| Max output level (IMA3 -60dB) | 86dBμV |
| Isolation between outlets | 20dB |
| Return path range | 5-30MHz |
| Return path gain | 6dB |
| Power for DigiLink eyes | 9V 15mA short circuit protected |
| RED, EMC and LVD | Compliant |
| Power required | 12V DC via Out “1” |
| Power supply | PSUFC included |
| Requirement | 220-240V~50/60Hz max. 5W under load |
| Output | 12V DC max. 300mA |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
