Labgear, LMA113R, 1 In, 1 Out, 13dB Gain UHF Pre-Amplifier
- Brand:Philex
- Product Code:LMA113R
- Availability:Please Call or Email Us to Check Availability
Labgear, LMA113R, 1 In, 1 Out, 13dB Gain UHF Pre-Amplifier

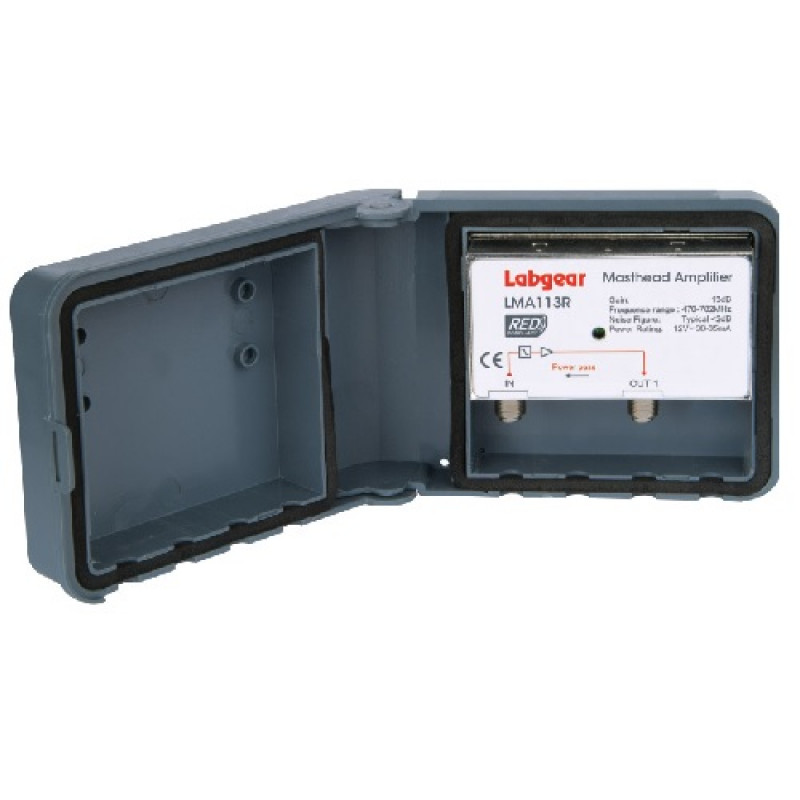

LMA113R – Masthead UHF pre-amplifier
Key Features:
- 1 in, 1 out with class 3 filtering
- Low noise with optimal gain for digital
- Ideal as pre-amp on larger systems
Fixed Gain Masthead Amplifiers:
The new Labgear masthead range builds on years of experience supplying the professional installer. Packed with features to make installing simpler and more reliable.
- LTE800 filtering on UHF products
- Choose low-noise fixed gain options or inter-stage variable gain products
- Fully screened modules tilt-out to make cable connection simpler
- Heavy duty metal mast clamp for sturdy fitting
- Weatherproof housing with foam seal
Specifications:
| Number of inputs | 1 |
| Number of outputs | 1 |
| Frequency range | 470-782MHz |
| Gain | 13dB |
| Noise Figure | Typ. <2dB |
| Max output level (IMA3 -60dB) | 98dBμv |
| Isolation between outlets | 18dB |
| RED, EMC and LVD | Compliant |
| Power required | 12V DC 60mA |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
