InfinitePlay (ZK114) IP Video Door Phone Kit - One Touch Button

InfinitePlay (ZK114) IP Video Door Phone Kit - One Touch Button

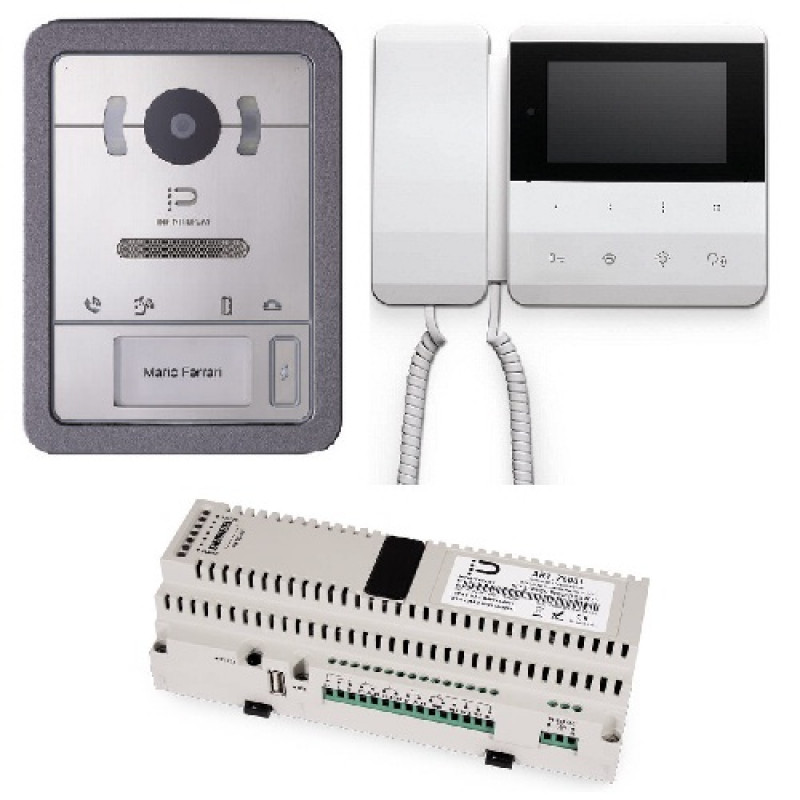

InfinitePlay IP video door phone kit including one Z1101 entrance panel with one touch button, one white Z4000 entryphone with handset and one Z6001 PoE power supply server. Pre-programmed in the factory.

Kit Includes:

• 1 x Z1101 Entrance Panel
• 1 x Z4000 White Video Phone
• 1 x Z6001 Power Supply

Z1101 SMALL entrance panel inox audio-video 1 touch button. SMALL Entrance panel in AISI 316 stainless steel.

Key Features:

• Power supply: PoE
• Camera: 5 Mpx - 30 fps
• Tecnology: IP
• Dimension:100x135x20 mm

Z4000 Pleats 4,3" with handset video entryphone function with capacitive keypad and intercom calls, white, PoE power supply, fixing bracket as standard. Dimension 210x155x22 mm.

Intuitive to use, elegant and sophisticated in design, and made to match all styles of decor. All controls are located on the front of the unit for easy access and immediate use.

PLEATS is the most user-friendly IP video door phone on the market today, whether used in hands-free mode or with a handset. PLEATS can be installed using all standard recessed back boxes such as the classic 3-module box.

Display 4.3"
A generous 4.3” high definition, animated colour monitor provides essential information like date and time and also displays incoming messages.

Ringtones
Various interchangeable ringtones can be selected to identify entrance panel, intercommunicating and doorbell calls.

Hearing aid
T-Coil technology is incorporated to ensure clear communications even for hearing aid users.

Low profile
Slender, compact shape thanks to a flush-fitting display and an innovative handset design.

Capacitice LED lit buttons
Simple icons with a common PLEATS family feeling. Buttons light up at a single touch and flash once the function is selected.

Presence sensor
The unit automatically detects your presence, illuminates display and icons for excellent visibility at all times of day.

Technical Specifications:

• Fast, powerful ARM CortexTM A8 Core, 1 Ghz processor
• RJ45 connection with PoE power supply
• 4.3” TFT LCD display, 480 x 272 resolution
• Fast Ethernet 10/100 IEEE 802.3at controller
• Capacitive buttons with presence sensor
• DSP stereo class-D CODEC noise cancelling
• 1 generic alarm input
• 1 panic alarm input
• 1 doorbell button input
• 1 relay for connection to a supplementary chime unit
• 1 connection for supplementary power supply
• 1 USB 2.0 OTG port

Z6001 PoE power supply for residential or condominium. SIP server system INFINITEPLAY in DIN casing with 12 modules for entrance panels and monitors. Able to feed and distribute up to four devices. Connecting to the internet router of building.

Key Features:

• Supply Voltage: 90V – 260V 50-60Hz
• 1 OUTPUT 12V 1A
• 3 AUX
• 4 INPUT
• Size: 12 DIN module 208x89x60 mm
• Operating temperature:0°C +45°C
• Polymer housing: ABS V0
