InfinitePlay (ZK271) IP Video 1 Button Door Entry Kit - White Flush Mount

InfinitePlay (ZK271) IP Video 1 Button Door Entry Kit - White Flush Mount

1 Button Door Entry kit features a brushed stainless steel entry panel with high quality five megapixel camera and a white seven inch touch screen monitor.

Unlike most video monitors, this model is compatible with hundreds of Android apps and has an internet browser. Users can also manage their intercom system on their Apple or Android smartphone.

The whole kit is powered by a single PoE (Power over Ethernet) power supply with just one RJ45 cable which powers both devices and connects them to the IP network.

While this kit is ideal for a single residence, it can also suit a small building with up to four apartments. The buttons on the panel can be adjusted manually, but the additional monitors and power supply are purchased separately.

Key Features:

• Plug & Play
• Apps Android & iOS included
• Outdoor unit with 5 Mpx HD camera
• Noise cancellation
• Indoor unit with 7" capacitive touch display
• Avaiable internat connection
• Pre-programmed in the factory.

Dimension:

• Panel: 310 x 130 x 2 mm (hwd)
• Monitor: 119 x 189 x 21 mm (hwd)
• PSU: 292 x 113 x 70 mm (hwd)

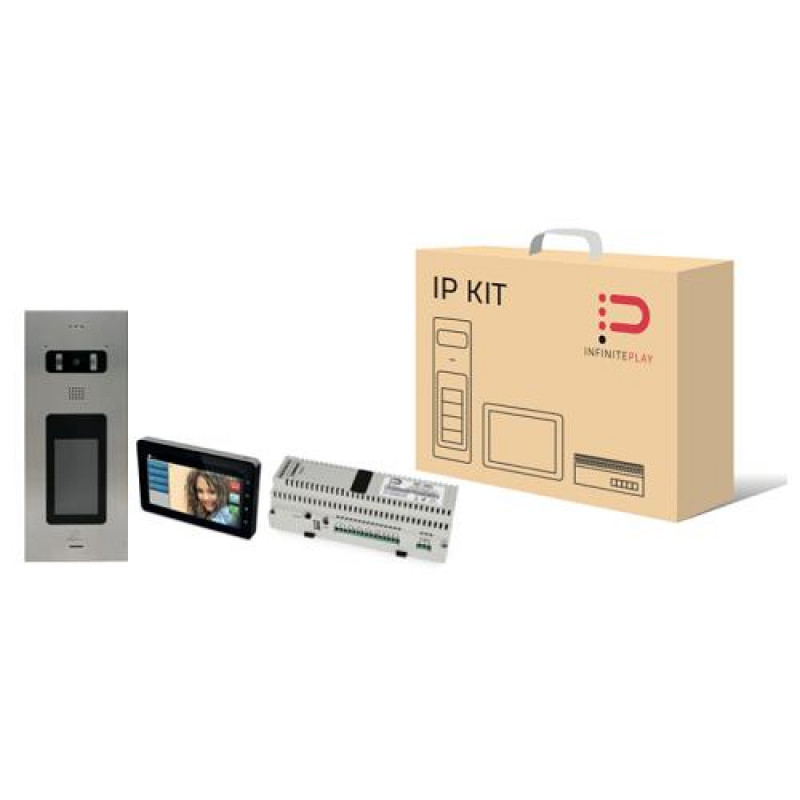

Kit Includes:

• 1 x Z2001 Flat Entrance Panel
• 1 x Z7000 White video monitor
• 1 x Z6001 Power supply

Z2001 1 Way video panel Audio/video FLAT FLUSH MOUNT entrance panel in AISI 316 stainless steel, with 1 to 4 touch buttons, electronic IP module, colour video camera with 5mp sensor and white LED illumination

Z7000 White video monitor This IP monitor features a seven inch touch screen display with an incredibly simple to use interface. Unlike most video monitors, this model is compatible with hundreds of Android apps and has an internet browser. For its installation, a single RJ45 cable is required which powers the device and connects it to the IP network. The device also has a mini USB 2.0 port for uploading images, backgrounds or other attachments including PDF documents.

Z6001 Power supply The greatest advantage of this Power over Ethernet (PoE) power supply is the fact it powers and connects a monitor or panel by using a single RJ45 cable. This cuts down the time spent on wiring the system considerably. It has four inputs, meaning it can connect up to four external or internal devices. The fifth input is for connecting to a router to establish an internet connection.

For more details, please refer with our attached manual.
