InfinitePlay (ZK27D.40) IP Video Touch Screen Door Entry Kit - Black Flush Mount

InfinitePlay (ZK27D.40) IP Video Touch Screen Door Entry Kit - Black Flush Mount

1 Button Door Entry Kit features a brushed stainless steel entry panel with high quality five megapixel camera and a black seven inch touch screen monitor.

Unlike most video monitors, this model is compatible with hundreds of Android apps and has an internet browser. Users can also manage their intercom system on their Apple or Android smartphone or unlock the door by entering a preprogrammed PIN code into the keypad on the panel.

The whole kit is powered by a single PoE (Power over Ethernet) power supply with just one RJ45 cable which powers both devices and connects them to the IP network.

While this kit is ideal for a single residence, it is practically limitless due its digital directory and no distance limitations between devices.

Key Features:

• Plug & Play
• Apps Android & iOS included
• Outdoor unit with 5 Mpx HD camera
• Noise cancellation
• Indoor unit with 7" capacitive touch display
• Avaiable internat connection
• Pre-programmed in the factory

Dimension:

• Panel: 310 x 130 x 2 mm (hwd)
• Monitor: 119 x 189 x 21 mm (hwd)
• PSU: 292 x 113 x 70 (hwd)

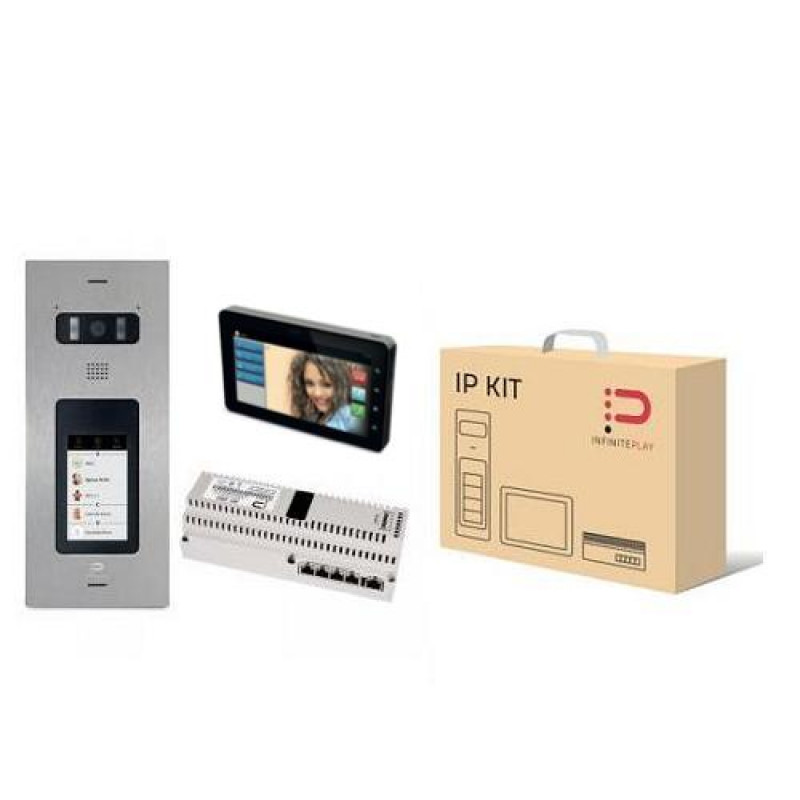

Kit Includes:

• 1 x Z200D Flat entrance panel with display
• 1 x Z7000.40 Black video monitor
• 1 x Z6001 Power supply

Z200D 1 Way video panel Audio/video FLAT FLUSH MOUNT entrance panel in AISI 316 stainless steel, with 1 to 4 touch buttons, electronic IP module, colour video camera with 5mp sensor and white LED illumination.

Z7000.40 Black video monitor Next IP hands-free, two-channel monitor with 7”, WVGA resolution, TFT LCD, capacitive touch-screen, in black finish. Mounting bracket supplied as standard.

Z6001 Power supply The greatest advantage of this Power over Ethernet (PoE) power supply is the fact it powers and connects a monitor or panel by using a single RJ45 cable. This cuts down the time spent on wiring the system considerably. It has four inputs, meaning it can connect up to four external or internal devices. The fifth input is for connecting to a router to establish an internet connection.

For more details, please refer with our attached manual.
