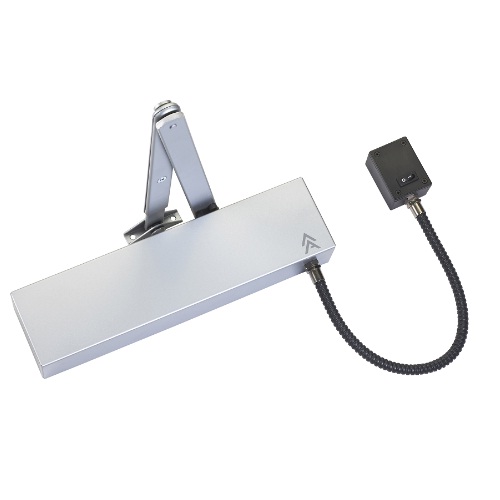

Arrow, AR623EM-S-S, Univ EM Door Closer, Silver Finish, Power 3 (60Kg)
- Brand:Freeman & Pardoe
- Product Code:AR623EM-S-S
- Availability:Please Call or Email Us to Check Availability
Your shopping cart is empty!
Arrow, AR623EM-S-S, Univ EM Door Closer, Silver Finish, Power 3 (60Kg)
The Arrow Electromagnetic Door Holder series is the ultimate solution for fire door safety and Ease of Access.
Linked to the buildings Fire Detection system, in either Hold Open or Swing Free mode the closers aid flow of traffic throughout the building, but shut automatically upon first detection of a fire.
The Hold Open option allows Barrier Free Access for all inhabitants of a building, whilst the Swing Free technology allows the door to function as if no door closer was fitted i.e. there is virtually no opening resistance.
Specification: Electromagnetic Standard Arm Closer (links to Fire Detection System); Hold Open or Swing Free Configuration; Pull Side Fitting ; Available in Transom Mount Fitting; Adjustable Latching & Speed as standard
The 623/4/5/6 Pull Side Hold Open or Swing Free collection of closers are available in the following power sizes and door weights/widths:
CE Power Size |
Maximum Door Weight/Width |
Model Number |
3 |
60kg/950mm |
623 Pull |
4 |
80kg/1100mm |
624 Pull |
5 |
100kg/1250mm |
625 Pull |
6 |
120kg/1400mm |
626 Pull |
Cover Options: Available in Square or Flowline
Finish Options: Available in Stainless Steel, Chrome or Brass as standard or available in one of our exclusive designs or coloured finishes
Material: Manufactured from British Extruded Aluminium and British Steel
Fire Tested: 120 Minutes
Body Specification: |
|||
Length (mm) |
Height (mm) |
Depth (mm) |
Weight (kg) |
278 |
60 |
46 |
2.3 / 2.35 (variable by model) |
Standards |
|
BSEN 1155 (Electrical) |
BSEN 1154 (Mechanical) |
BSEN 1634 (Fire Test) |
BS8300 (Ease of Access)
|
For more details, please refer with our attached datasheet.
