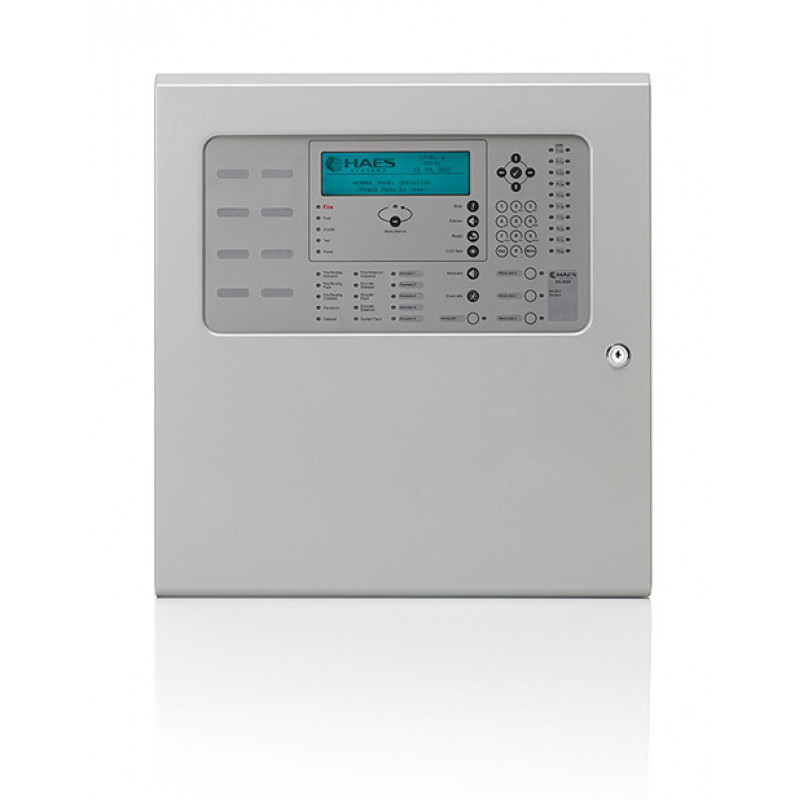

Technical Specification:
Features
- 20 programmable Zonal / 25 System LED’s with slide-in labels.
- Dedicated loop driver for Apollo & Hochiki protocol support.
- Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware expansion.
- Dual flash-based microprocessor technology with Real-Time Clock on-board.
- Dedicated USB & RS232 Serial Port for direct PC or modem connection.
- Installer friendly ‘Auto-learn’, ‘Loop Detection’ and on-board Scope facility for ease of Commissioning and Fault finding.
- Fully programmable via the on-board alphanumeric keypad, or PC configuration tools.
- The Graphical display can be configured to operate with virtually any language or character set, and allow the installer’s logo to be applied using the ‘Logo’ application software.
- Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
- Integral ‘P-Bus’ for system expansion via available option cards.
- Connection to the ‘Ad-NeT’ peer-to-peer network is achieved using a simple plug-in network card allowing the system to share up to 2000 zones with full cross panel reporting, control and site-wide cause and effect functionality.
Base Technology
Dual flash-based Processors with Real-Time Clock, ‘Trace’ Diagnostics, Programmable Languages and Character Sets
Display
White Backlit 240 x 64 Graphical LCD
LED Indicators
4 Red (3 x Fire, 1 x More Alarms), 1 Green (Power) & 20 Amber (Fault & System)
Controls
Alpha Numeric Keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable Push Buttons
No of Fire Zones
2000 ‘Dynamix’ (200 per individual panel)
No of Loops
Dedicated 1 – 4 loop control panel
Loop Current
500mA per loop
On Board Sounder Circuits
4 x 1 amp, programmable
On Board Relays
2 x 1 amp, 30v AC/DC programmable (10mA, 5v min) – Expandable using HS-507
Auxiliary Supply
1 x 24v, 500mA
Programmable Input
1 x monitored, programmable input, on board
Programmable Key Switch Inputs
8 x Volt Free Digital Inputs
Total Available Output Current
5A maximum, available for loop current + sounder outputs + auxiliary supply
Mains Supply
200 – 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
Battery Capacity
24V 4Ah Internal (min), 24v, 18Ah Internal (max),
Deep Enc. (D) = 24v, 45Ah Internal (max)
Charger Current
2A temperature compensated
Serial Port
1 x On-board RS232 connection for PC, Modem, IP, or Portable Printer
USB Interface
1 x USB B type connection for PC Communication
Programming
On board keypad or PC running Windows tools
Event Log
5000 event & diagnostic + 500 fire
Networking
Optional plug in Network Card (HS-503 – Standard, or HS-509 – Fault-Tolerant)
Enclosure / Colour
Steel IP30 / Radon MW334E Interpon powdercoat
Cable Entry (20mm Knockouts)
19 x Top, 11 x Rear, & 2 x Bottom
Deep Enc. (D) = 30 x Top, 11 x Rear, & 3 x Bottom
Size, H x W x D mm
Standard Enc: 470 x 450 x 115,
Deep Enc. (D): 470 x 450 x 190
