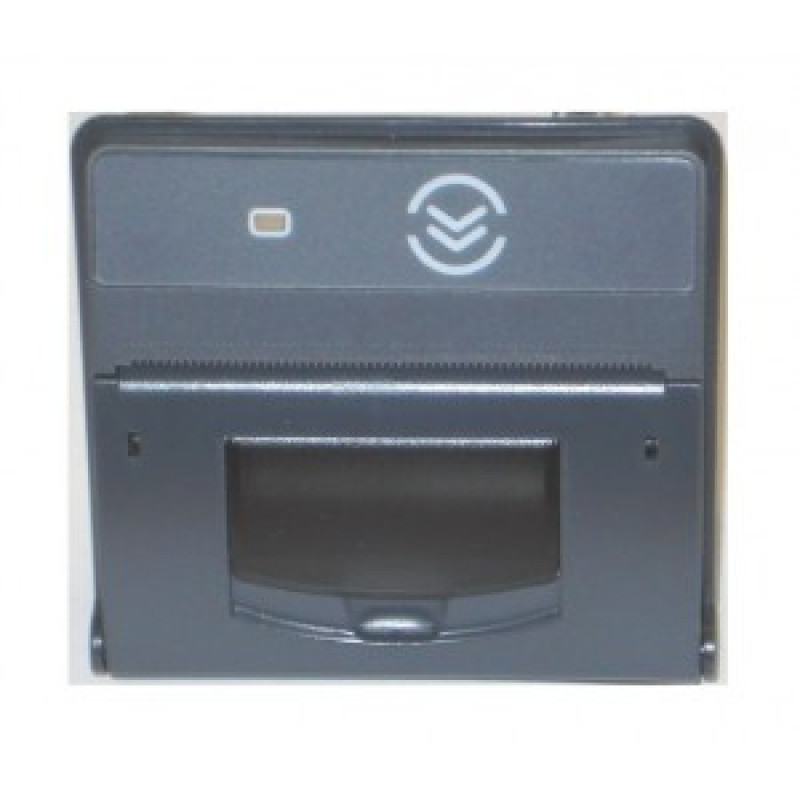

Haes, HSP-512, On-Board Printer Assembly
- Brand:Haes Systems
- Product Code:HSP-512
- Availability:Please Call or Email Us to Check Availability
Haes, HSP-512, On-Board Printer Assembly
The On-Board thermal printer is an internal peripheral for use with the HSP 5 range of control panels.
This additional unit provides automatic, or on demand copy listings of the event log or status information.
The unit being fast and silent during operation has its own in-built battery backup to enable continuous uninterrupted operation even during a mains fail situation. Spare rolls of thermal paper can easily be replaced due to the mechanism’s easy access, front-loading compartment.
On-demand option for printing:
- Inputs
- Outputs
- Disablements
- Event Log
- Network Faults
Can be used for printing the panel’s event log or configured by the user to automatically print any of the following event types: Fire, Fault, Alarm or Test.
Key Features:
- Fast instant response
- 3 year warranty as standard
- Fast and silent operation
- Thermal printer
- Cost effective against ancillary hardware
Specification:
- Printer Type: Thermal, graphical
- Printer resolution: 384 dots per line
- Panel loading in Quiescent State: 20mA
- Panel loading, continuous printing: 25mA
- Maximum working temperature: 50°C
