ESP (SHDV8KD4W8TB) 8CH Full HD 8TB CCTV System

ESP (SHDV8KD4W8TB) 8CH Full HD 8TB CCTV System

  • Brand:ESP
  • Product Code:SHDV8KD4W8TB
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

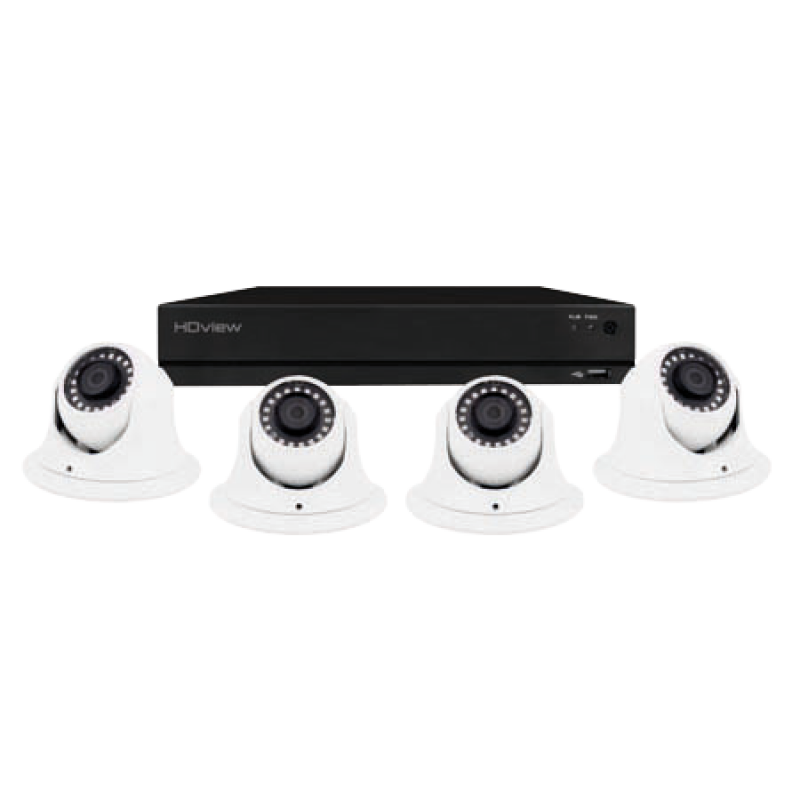

ESP (SHDV8KD4W8TB) 8CH 4MP 8TB 4 WHITE DOME CAMERA KIT

  • Complete with DVR, Cameras, Cable & System Power Supply
  • 4 x 4MP HD day/night dome Cameras - SHDVC36FDG/ SHDVC36FDW
  • Hard drive options: SHDV4KD - 500GB, 1TB, 2TB, 4TB or 8TB
  • 8 Channel System (Supports up to 8 cameras)
  • 4 Megapixel live view
  • Recording options – Continuous / Scheduled / Motion
  • Remote Monitoring via APP (Android / IOS) or PC
  • USB back up of recordings for easy evidence transfer
  • Video outputs HDMI / VGA for connection to a monitor
  • Premium Surveillance Hard Drive pre-installed
  • Programmable Spot Output
  • CMS software included for remote viewing via a pc
  • Remote monitoring via wired connection or PowerLine Adapter (PLA)
  • Mouse driven comprehensive user interface
  • Silent DVR operation

Technical Specifications:

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video & Audio
Video Input SHDV4KD - 4 channel BNC SHDV8KD - 8 channel BNC
Audio Input SHDV4KD - 4 channel RCA SHDV8KD - 4 channel RCA
Audio Output 1 channel RCA
Display
Video Output 1 x HDMI, 1 x VGA, 1 x Auxiliary
Display Split SHDV4KD - 1 and 4 SHDV8KD - 1, 4 and 10
Resolution 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560x1440
Recording
Video/Audio Compression H.264 Mainprofile/G.711A
Resolution 4 Megapixel
Record Rate (Main Stream) SHDV4KD - 4ch 4MP recording SHDV8KD - 8ch 2MP recording
Recording Mode Manual/Motion Detection/Schedule
Playback & Backup
Sync Playback SHDV4KD - 4ch 4MP recording SHDV8KD - 8ch 2MP recording
Backup Mode Network/USB2.0 devices
Network
Ethernet RJ45 10M/100M
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Network Monitoring Web browsers, CMS, Android & iPhone apps
Storage
Internal HDD 1 SATA HDD, up to 8TB per HDD
Auxiliary Interface
USB Interface 2
General
Power Supply DC12V/2A
Power Consumption <10W (without hard disk)
Operation Condition 0ºC – +55ºC / 10% – 90%
Dimensions 250(W)x230(D)x45(H)mm

RELATED PRODUCTS:

SHDV8KD4W 8CH 4MP 1TB 4 WHITE DOME CAMERA KIT
SHDV8KD4W2TB 8CH 4MP 2TB 4 WHITE DOME CAMERA KIT
SHDV8KD4W4TB 8CH 4MP 4TB 4 WHITE DOME CAMERA KIT

For more details on this product range, including part numbers, please refer to the datasheet below or contact us.
