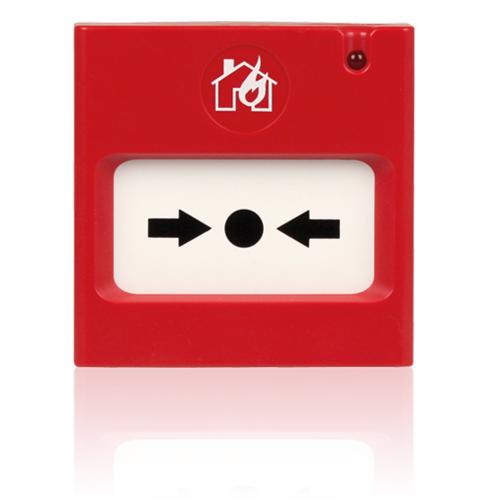

ESP (MAGPRO-CP) Addressable Manual Call Point - Red
- Brand:ESP
- Product Code:MAGPRO-CP
- Availability:Please Call or Email Us to Check Availability
ESP (MAGPRO-CP) Addressable Manual Call Point - Red
Key Features:
- Resettable call point
- Certified to EN54–11–A
- Built in isolator
- IP40 Rated
- Optional protective plastic cover
Technical Specification:
Operating Voltage Range: 15-30VDC (Nom 27VDC)
Consumption in Quiescent State No Communications: 125uA@27VDC
Consumption with Comunication: 160uA@27VDC
Consumption in Fire Mode: 3mA
Type of the Working Element: Ressettable (flexible)
Type,according to EN54-11: A
Wire Gauge for terminals: 0.4mm² - 2.0mm²
Operating temperature: -10°C to +60°C
Relative Humidity Resistance: (93±3)% @40°C
Protection: IP40
Dimensions: 90x90x57mm
Material: Plastic
colour: Red
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
