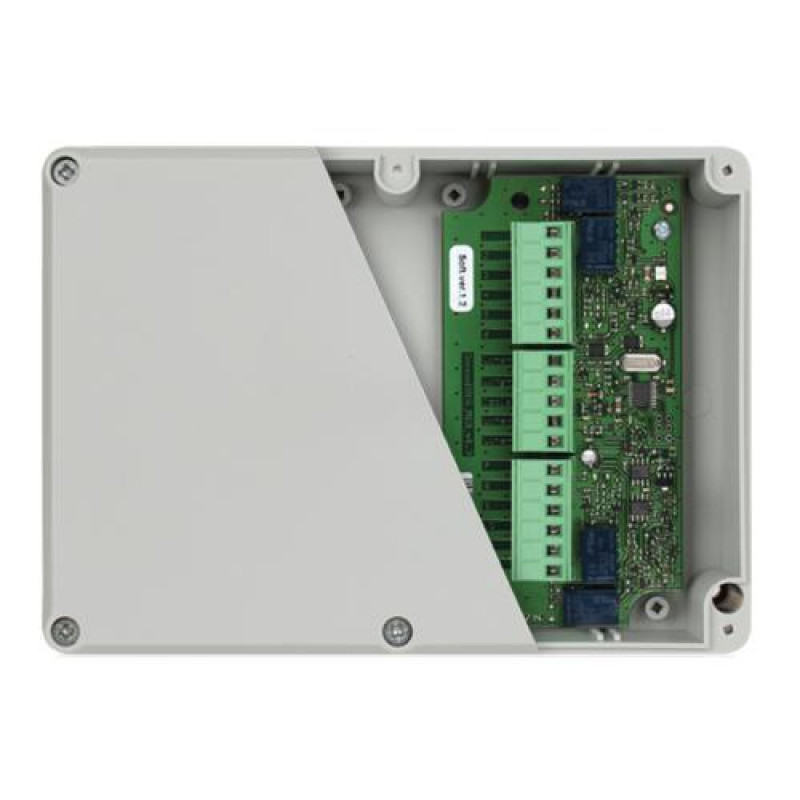

ESP (MAGPRO-0i4O) 4 Output Module with Isolator
- Brand:ESP
- Product Code:MAGPRO-0i4O
- Availability:Please Call or Email Us to Check Availability
ESP (MAGPRO-0i4O) 4 Output Module with Isolator
Key Features:
- 4 Relay outputs
- Loop powered
- Built in isolator
- Certified to EN54–18
- Example applications - Shutdown of ventilation equipment and door override
Technical Specification:
- Operating Voltage Range: 15-30VDC (Nom 27VDC)
- Consumption in Standby Mode: 175uA @27VDC
- Norm, Current Consumption: 200uA @27VDC
- Outputs, Electrical Charectoeristics (max): DC 30v /1A; AC 125V /0.5A
- Current Consumption with 1 LED onl: 4mA
- Wire Gauge for terminals: 0.4mm² - 2.0mm²
- Operating temperature: -10°C to +60°C
- Relative Humidity Resistance: (93±3)% @40°C
- Protection: IP40
- Material: Plastic
- colour: White
- Dimensions: 142x80x45mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
