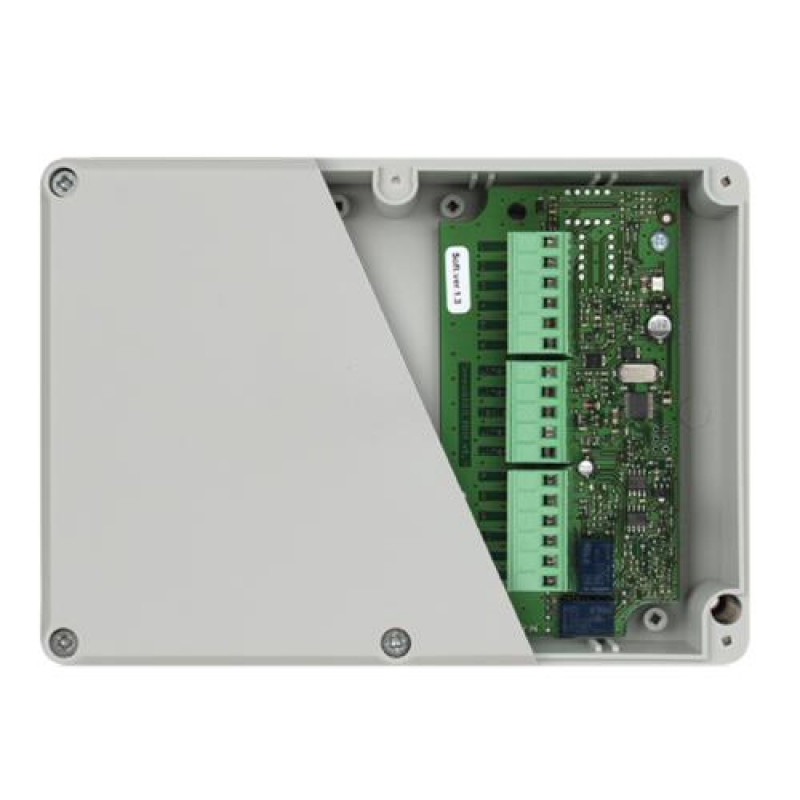

ESP (MAGPRO-2i2O) 2 Input 2 Output Module with Isolator
- Brand:ESP
- Product Code:MAGPRO-2i2O
- Availability:Please Call or Email Us to Check Availability
ESP (MAGPRO-2i2O) 2 Input 2 Output Module with Isolator
Key Features:
- 2 Monitored Inputs
- 2 Outputs
- Loop powered
- Built in isolator
- Certified to EN54–18
- Example application - Link to monitoring station signalling devices
Technical Specification:
Operating Voltage Range: 15-30VDC (Nom 27VDC)
Consumption in Standby Mode: 235uA @27VDC
Norm, Current Consumption: 260uA @27VDC
Outputs, Electrical Charectoeristics (max): DC 30v /1A; AC 125V /0.5A
Current Consumption with 1 LED onl: 3.5mA
Current consumption with 2 LEDS on: 7mA
Wire Gauge for terminals: 0.4mm² - 2.0mm²
Operating temperature: -10°C to +60°C
Relative Humidity Resistance: (93±3)% @40°C
Protection: IP40
Material: Plastic
colour: White
Dimensions: 142x80x45mm
For more details, please refer with our attached manual.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
