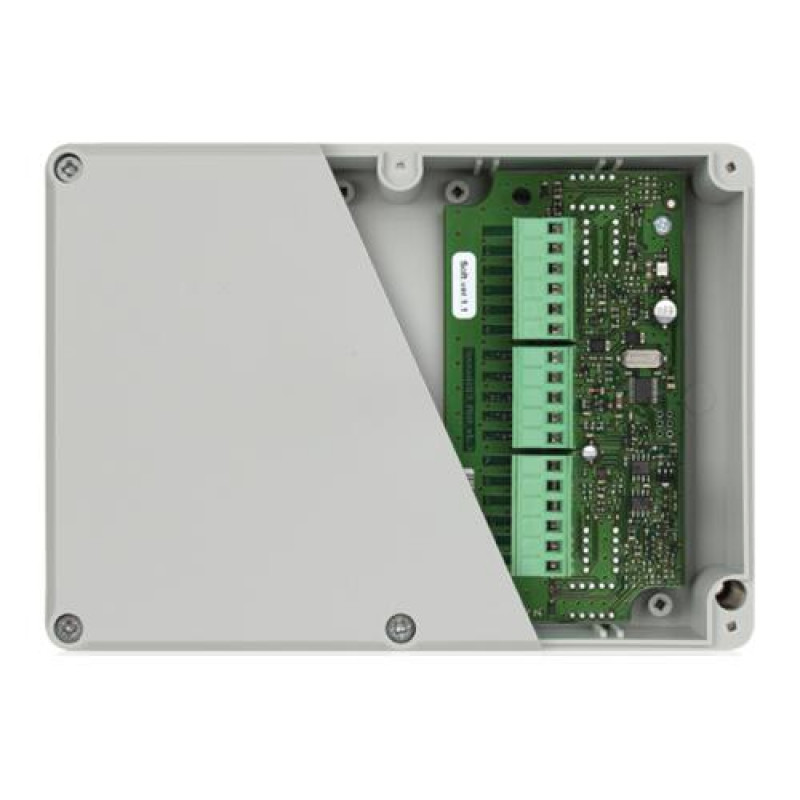

ESP (MAGPRO-4i0O) 4 Input Module with Isolator
- Brand:ESP
- Product Code:MAGPRO-4i0O
- Availability:Please Call or Email Us to Check Availability
ESP (MAGPRO-4i0O) 4 Input Module with Isolator
Key Features:
- 4 Monitored Inputs
- Loop powered
- Built in isolator
- Certified to EN54–18
- Example applications - Input from external equipment, extinguishing/sprinkler panel
Technical Specification:
- Operating Voltage Range: 15-30VDC (Nom 27VDC)
- Consumption in Standby Mode: 300uA @27VDC
- Norm, Current Consumption: 330uA @27VDC
- Current Consumption with 1 LED on: 4mA
- Current Consumption with 2 LEDs on: 7mA
- Wire gauge for terminals: 0.4mm²- 2.0mm²
- Operating temperature: -10°C to +60°C
- Relative Humidity Resistance: (93±3)% @40°C
- Protection: IP40
- Material: Plastic
- colour: White
- Dimensions: 142x80x45mm
For more details, please refer with our attached manual.
