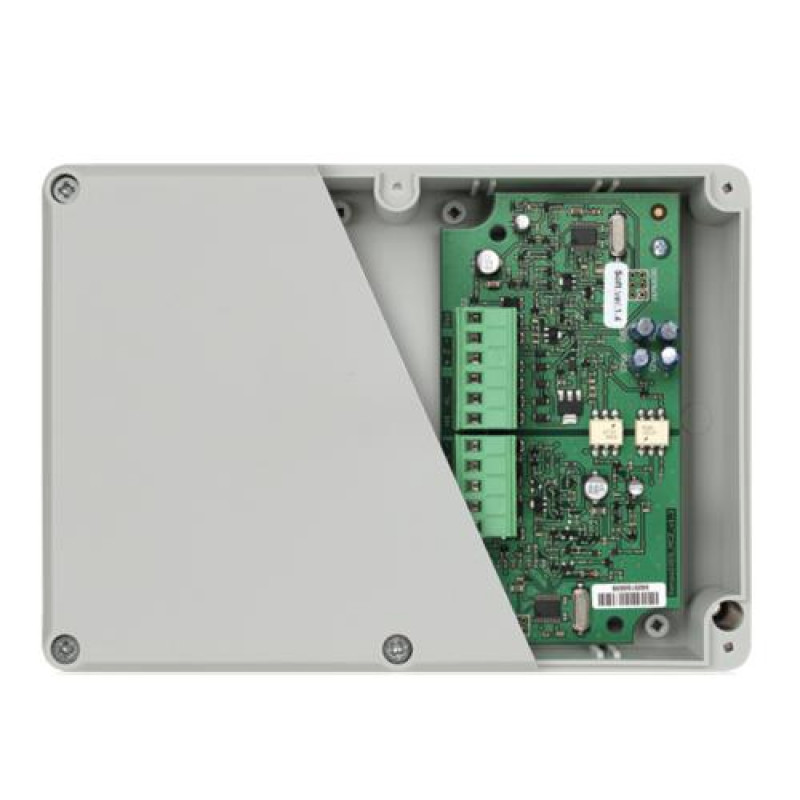

ESP (MAGPRO-CZM) Conventional Zone Module with Isolator

ESP (MAGPRO-CZM) Conventional Zone Module with Isolator

Key Features:

• Integrate conventional detectors into an addressable system
• Max number of detectors in one zone - 32
• Loop powered
• Built in isolator
• Certified to EN54–18
• Example applications - Integrate conventional equipment i.e. beam detectors

Technical Specification:

• Operating Voltage Range: 15-30VDC (Nom 27VDC)
• Permissible Voltage Rippler: 3.0Vpp@27VDC
• External Power Supply of the Zone: 15 - 32VDC
• Max. Current Consumption with external power supply: 150uA@27VDC
• Max, Current Consumption, Loop power supply: 5.5mA
• Current Consumption with 1 LED on: 3mA

Max Current consumption (ALARM Mode):

• Max number of conventional detectors in one zone: 32
• Wire gauge for terminals: 0.4mm²- 2.0mm²
• Operating temperature: -10°C to +60°C
• Relative Humidity Resistance: (93±3)% @40°C
• Protection: IP40
• Material: Plastic
• colour: White
• Dimensions: 142x80x45mm

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
