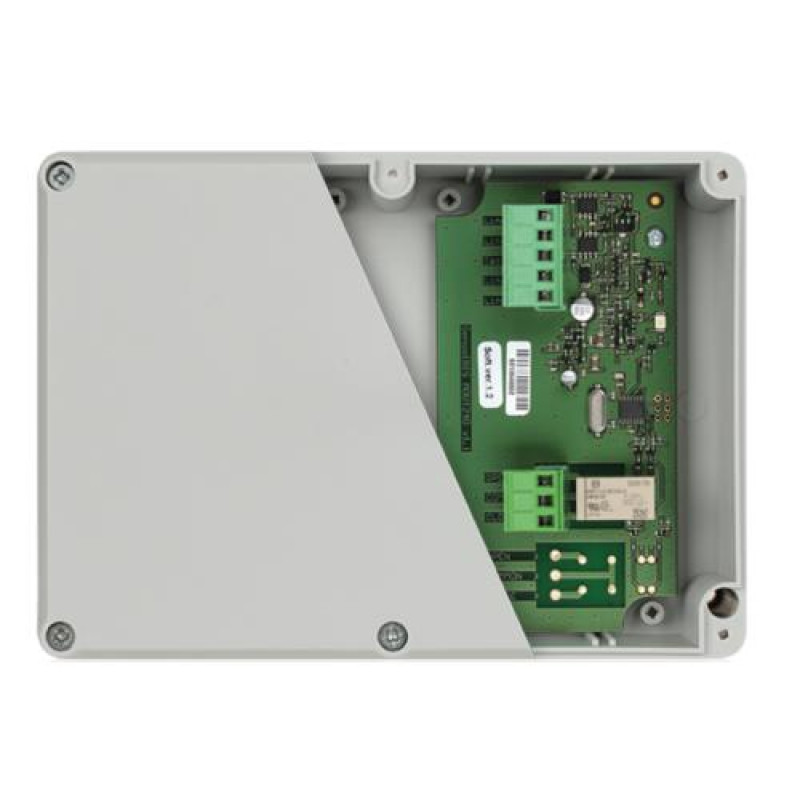

ESP (MAGPRO-R) Mains Relay Output Module with Isolator
- Brand:ESP
- Product Code:MAGPRO-R
- Availability:Please Call or Email Us to Check Availability
ESP (MAGPRO-R) Mains Relay Output Module with Isolator
Key Features:
- Suitable for control of 240VAC voltage circuits up to 5A
- Loop powered
- Built in isolator
- Compliant to EN54–18
- Example application - AC 240V door magnet override
Technical Specification:
Operating Voltage Range: 15-30VDC (Nom 27VDC)
Consumption in Standby Mode: 175uA @27VDC
Norm, Current Consumption: 220uA @27VDC
Current Consumption with 1 LED on: 4mA
Relay Ratings: 5A/ 250VAC; 5A/ 30VDC
Operating temperature: -10°C to +60°C
Relative Humidity Resistance: (93±3)% @40°C
Protection: IP40
Material: Plastic
colour: White
Dimensions: 142x80x45mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
