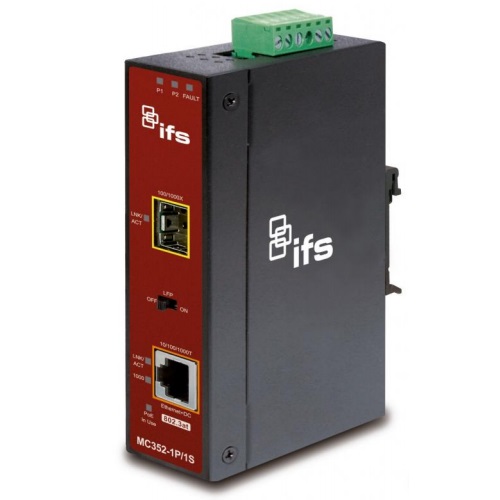

IFS (MC352-1P/1S) GB Ethernet to SFP Industrial Managed Media Converter

IFS (MC352-1P/1S) 1Port 10/100/1000Base-T + 1-Port SFP Unmanaged Media Converter - Wall Mount

These IFS Gigabit Ethernet to SFP Industrial Media Converters are designed for the most demanding IP network applications offering the flexibility of SFP technology and wide operating temperature range. The MC352-1P/1S model provides full IEEE802.3-at (30w) PoE and serves as a PSE device.

Key Features:

• 10/100/1000 Base-SX/BX/LX/LHX/ZX and 100 Base-FX/BX/LX
• 10/100Base-TX: 2-pair Cat. 5e/6 UTP cable, up to 100 meters
• 1 SFP slot provides custom configuration
• Optical fiber and distance varies by SFP (ordered separately)
• Plug-n-play installation
• Slim IP30 metal enclosure
• DIN-rail or wall-mounting
• 24 to 48 VDC with redundant power with reverse-polarity protection
• Alarm relay output for port breakdown and power-failure alert
• Complies with IEC60068-2-xx standards for free-fall, shock and vibration
• Wide operating temperature range of -40°C ~ +75°C
• Power over Ethernet
• Complies with IEEE 802.3at
• Inserts 52VDC (30w) power on Category network cable
• Protects non-PoE devices if accidentally connected
• Backwards compatible with IEEE802.3af

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
