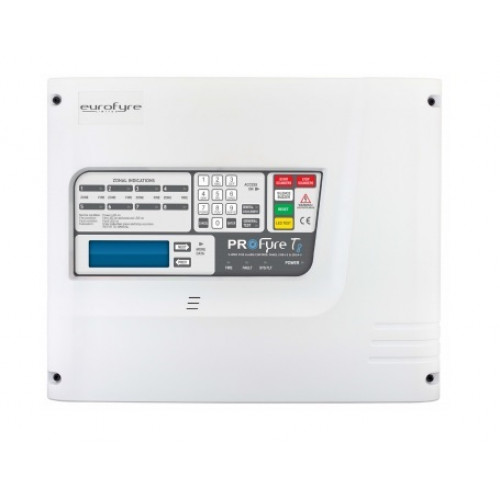

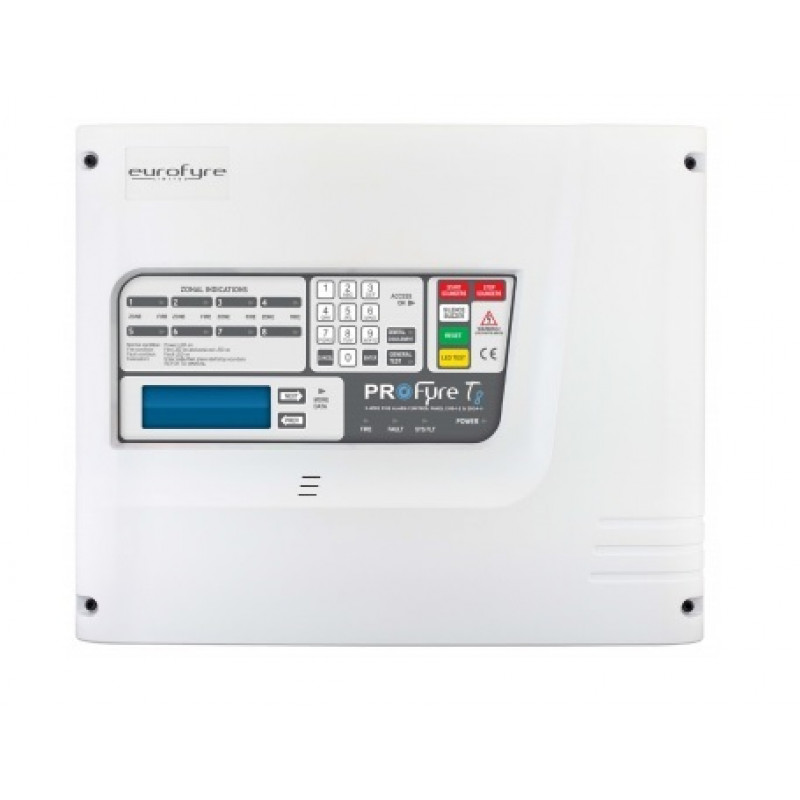

14-003, ProFyre T8, 8 Zone / 1 Loop Addressable Fire Alarm Panel

14-003, ProFyre T8, 8 Zone / 1 Loop Addressable Fire Alarm Panel

  • Brand:Eurofyre
  • Product Code:14-003
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


14-003, ProFyre T8, 8 Zone / 1 Loop Addressable Fire Alarm Panel

The ‘ProFyre T8’ 2-wire fire alarm control panel is designed for use with the ProFyre range of twin-wire detectors, manual callpoints, sounder/flashers and ancillary devices. In common with other twin-wire conventional systems on the market, T8 allows all device types to share and receive power over just two wires. The T8 takes this technology still further, by providing unparalleled flexibility in both wiring topology and standard features. Depending upon the panel specified, up to 8 radial zones or 1 single loop can be accommodated, which means that the system is ideal for conventional retro-fits, new builds and HMO’s.

Key Features:

  • Detectors, call points, sounders and ancillaries
  • connected to same two wires
  • Radial (zone) or loop wiring topologies - selectable
  • Selectable sounder tone (panel selected)
  • Cable break identification
  • Cable short-circuit protection
  • Device count verification
  • Programmable alarm verification (per device)
  • System history (2048 events, first in, last out)
  • Zone check
  • One man walk test
  • Key-less controls activation
  • 2 conventional sounder circuits
  • Combined surface / semi-recessed enclosure
  • Internal switch-mode power supply
  • Ability to isolate zones/sounder circuits
  • High visibility blue LCD screen
  • Auto configuration for easy set-up.

Specifications:

  • Model Number : T8-8
  • Class : 8 Zone
  • Approvals : Designed to EN54 Part 2 & 4
  • Top Cable Entries : 15 x 19mm diameter entries
  • Mains Voltage : 230V AC +10% / - 15% @ 50/60 Hz
  • Battery Voltage : 24V DC (2 X 12V SLA Battery)
  • System Voltage : 29V DC Nominal (18 – 32 V)
  • Charger Size : 150mA
  • Zone Voltage : 28V DC Nominal (+9 volt data)
  • Sounder Alarm Outputs : Loop Powered Sounders
  • 2 x Conventional sounder : circuits 28V nominal,150mA
  • Auxiliary Fault Output : 1 x Fault Relay SELV@1A (Normal Energy)
  • Auxiliary Fire Output : 1 x Fire Relay SELV@1A
  • Maximum Number of Zone : 8
  • Maximum Zone Capacity Recommended Max. - 15 Devices per Zone
  • Charger Voltage : 27.6V @ 22-24°C (No Battery Connected)
  • Battery Deep Discharge Protection : Batteries less than 19V
  • Total PSU Output : 2.5A
  • Battery Size : 3.4Ah.

Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
