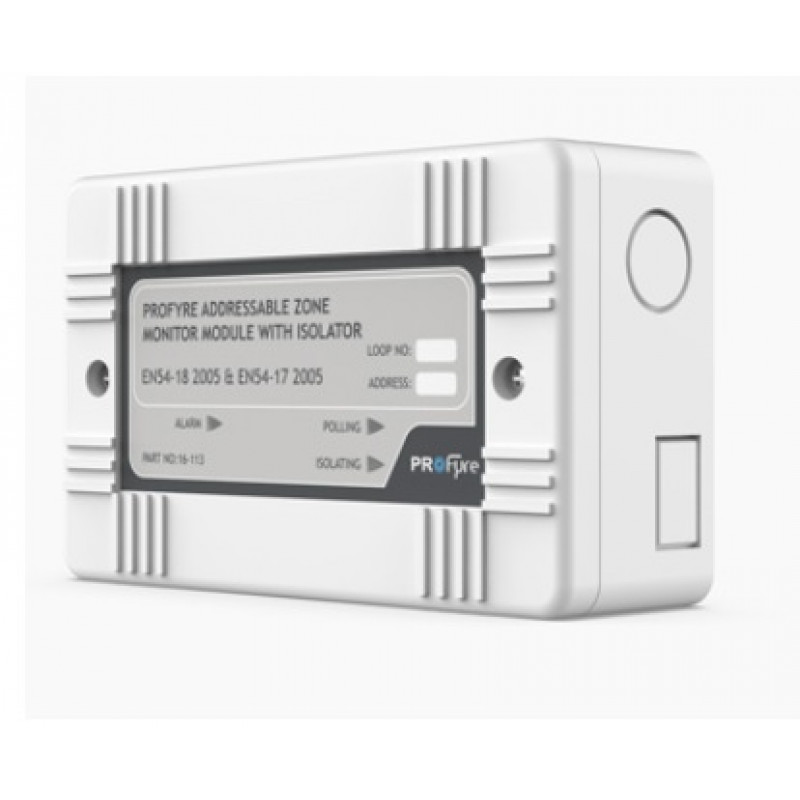

16-113, ProFyre Addressable Zone Monitor Unit with Isolator
- Brand:Eurofyre
- Product Code:16-113
- Availability:Please Call or Email Us to Check Availability
16-113, ProFyre Addressable Zone Monitor Unit with Isolator
The Addressable Zone Monitor enables compatible conventional trigger devices to be connected to the addressable loop, forming as a single radial wired zone circuit. The interface module is loop powered and there can be a maximum of 16 devices per ProFyre loop, subject to other device loading. A bi-directional short-circuit isolator has been fitted to the interface module to ensure continued functionality in the event of a short-circuit on either the loop in or out terminals.
The interface is supplied with a back box incorporating four 20mm knock-outs and three mini trunking knock-outs for surface mounting purposes. The device is also compact enough to be mounted directly on to a double European back box for semi-flush mounting. To minimise any damage during installation, all electronics are protected by a cover. The ProFyre Addressable Zone module has an ingress protection rating of IP21C (with back box) for internal use only.
Key Features:
- Loop powered
- Addressed with dip switches or a hand-held
- programmer
- Integral bi-directional short circuit isolator
- Visible status, fault and alarm LED indication
- Surface or Semi-flush mounting.
For more details, please refer with ur attached datasheet.
