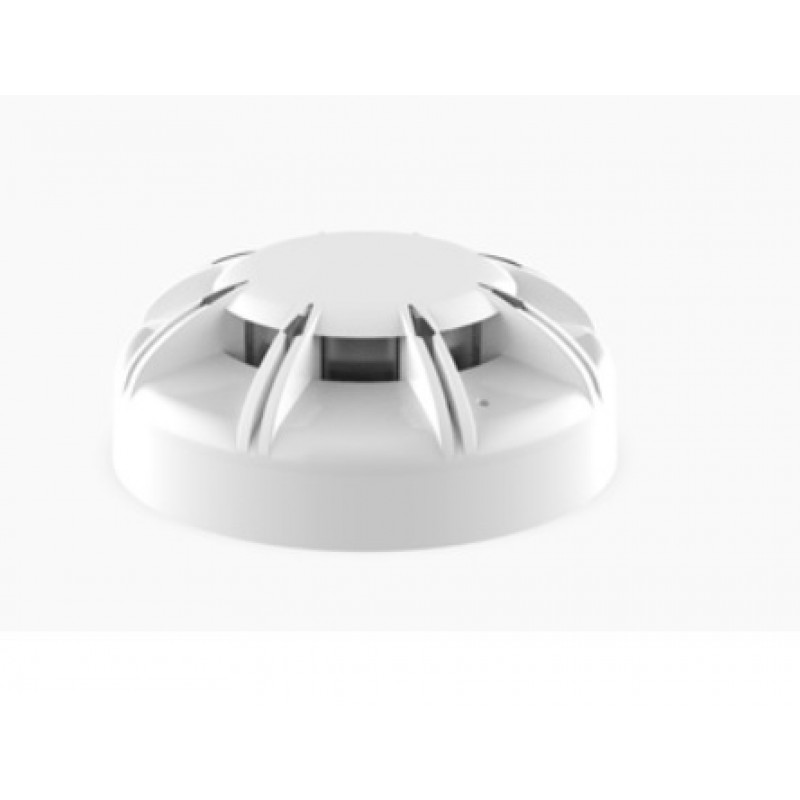

12-020, ProFyre Conventional Optical Smoke Detector
- Brand:Eurofyre
- Product Code:12-020
- Availability:Please Call or Email Us to Check Availability
12-020, ProFyre Conventional Optical Smoke Detector
The optical smoke detector uses a pulsing IR LED and photo diode to detect IR scatter caused by smoke entering the chamber. The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).
Key Features:
- Low Profile
- 360 Degree LED Indication
- Lockable to base to stop unauthorised removal
- Remote LED Output
- LPCB approved.
Specifications:
- Alarm Condition : 2.4% obs/m
- Coverag : 100m²
- Operating Voltage : 10.50 to 33Vdc
- Quiescent Current : 40μA
- Alarm Current : 35mA
- Operating Conditions : Tested to: -10°C to +50°C (14°F to 122°F) ,Maximum Continuous Temperature: 0°C (32°F), Humidity: 0% to 95% RH, non-condensing
- IP Rating : IP43
- Design Environment : Indoor Use Only.
Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
