12-022, ProFyre Conventional A2S Fixed Heat Detector
- Brand:Eurofyre
- Product Code:12-022
- Availability:Please Call or Email Us to Check Availability
12-022, ProFyre Conventional A2S Fixed Heat Detector

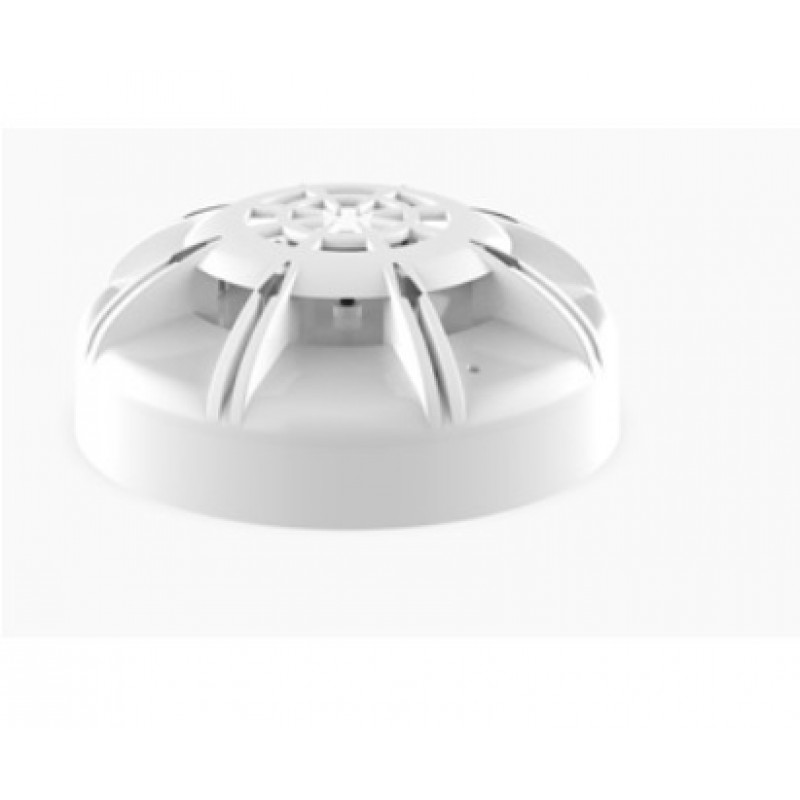

The 12-022 is a ProFyre Conventional A2S Fixed Heat Detector. The fixed heat detector has a single thermistor arrangement that initiates an alarm at a temperature of 57°C.
Key Features:
- Low Profile
- 360 Degree LED Indication
- Lockable to base to stop unauthorised removal
- Remote LED Output
- LPCB approved.
Specifications:
- Alarm Condition : Rate of Rise & Fixed Heat (A2R): 57°C,Fixed Heat (A2S): 57°C,Fixed Heat (CS): 90°C
- Coverage : 50m²
- Operating Voltage :10.50 to 33Vdc
- Quiescent Current : 40μA
- Alarm Current : 35mA
- Remote Output : 20mA at 24Vdc
- Operating Conditions :Tested to: -10°C to +50°C (14°F to 122°F),Maximum Continuous Temperature: 0°C (32°F),Humidity: 0% to 95% RH, non-condensing
- IP Rating : IP43
- Design Environment : Indoor Use Only.
Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
