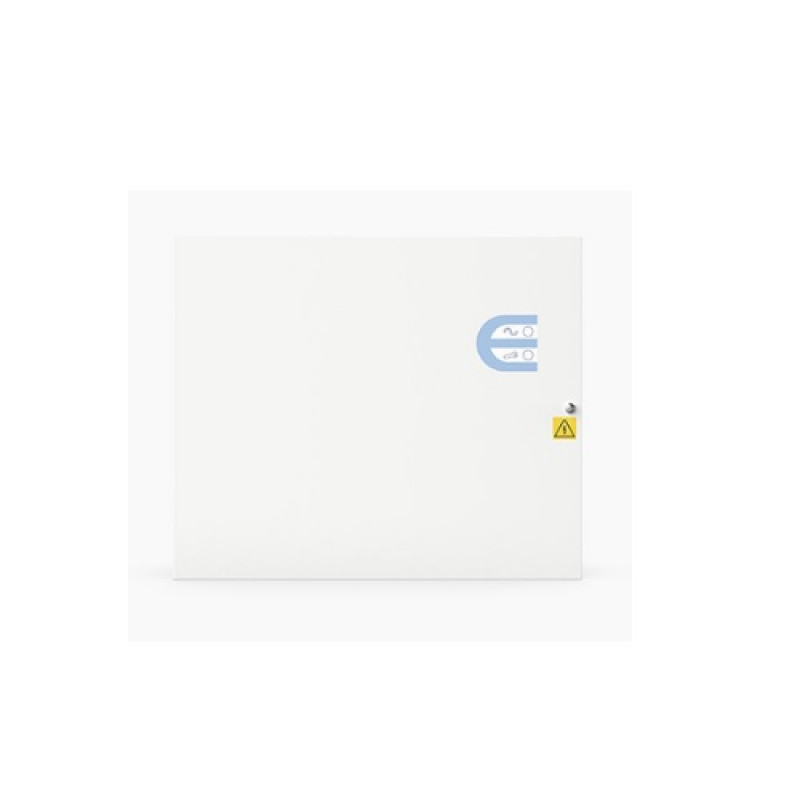

28-022, Power Supply, 2A, 24Vdc, 110-240Vac, 7Ah Max
- Brand:Eurofyre
- Product Code:28-022
- Availability:Please Call or Email Us to Check Availability
28-022, Power Supply, 2A, 24Vdc, 110-240Vac, 7Ah Max
The Elmdene STX range of switch mode power supplies are designed for EN 54 compliant fire systems and are certified to EN 54-4:1997, A1:2002 and A2:2006.
Elmdene STX power supply units are available in 1A and 2A versions with a range of enclosures to give the installer a choice of standby battery backup options with support for two 12V 1.2Ah batteries and two 12V 17Ah batteries.
These cost-effective fire alarm system power supply units provide a full rated current at 27.6V dc with additional current for battery charging. STX power supplies also support intelligent battery charging and monitoring using Elmdene’s EcoCharge technology and independent volt-free outputs to report mains failure and battery faults, charger faults or loss of output reports. These units also feature battery deep discharge protection in the event of a prolonged mains failure.
LED indicators provide quick diagnosis of the power supply showing the mains status, output fault, battery fault and charger fault indications.
Key Features:
- 27.6V dc output
- EN54 certified
- Cost-effective switch mode technology
- Energy efficient
- LED indication
Specification:
| Mains Input | 93 to 264Vac |
| Output | 27.6Vdc |
| Maximum Current | 2A |
| Battery Capacity | 2 x 12V 7Ah |
| Operating Temperature | -10°C to 40°C at 95% RH |
| Dimensions (W x H x D) | C Models: 275mm x 330mm x 80mm E Models: 420mm x 400mm x 80mm |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
