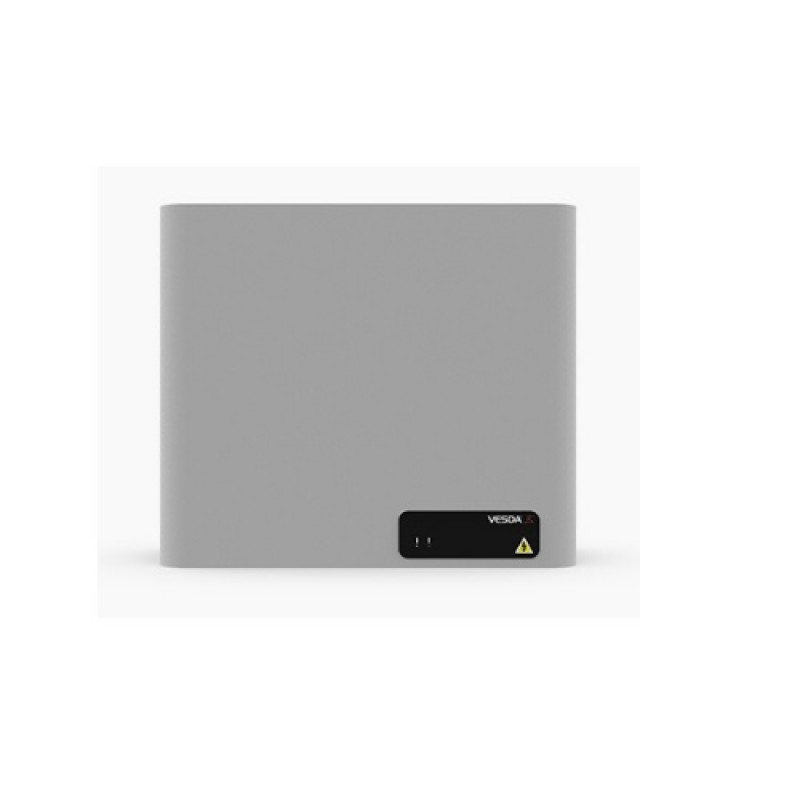

VPS-250-STX-SLV, VESDA-E STX 2A Power Supply, 14Ah Batteries Max - Grey
- Brand:Eurofyre
- Product Code:VPS-250-STX-SLV
- Availability:Please Call or Email Us to Check Availability
Your shopping cart is empty!
VPS-220-STX-SLV, VPS-250-STX-SLV, VESDA-E STX 2A Power Supply, 14Ah Batteries Max - Grey
VESDA-E STX Power Supply Units are designed to complement the looks and style of VESDA-E aspirating smoke detectors. These power supply units are technically matched to provide sufficient current and battery charging capacity to meet EN54-4 requirements and are also VdS approved.
VESDA-E STX Power Supply Units visually blend with the VESDA-E Detectors. They are the same width and colour and feature the same curved profile. They also have an internal channel to accommodate the exhaust of VESDA-E detectors; a feature that is particularly useful when back-venting is necessary.
These power supply units are available in two colour variants; matt black, the standard colour, which matches the finish of the black plastic VESDA-E detectors and grey which compliments the extruded aluminium finish of the premium VESDA-E detectors.
This is the shallowest of the two power supplies with its depth and width matching the VESDA-E detectors.
This unit is the deeper of the two and is designed for installation with VESDA-E VEU detectors running at fan speeds up to 10. The integrated charger is EN54-4 approved and rated to provide a 2 Amp continuous 24VDC supply. The enclosure is designed to accommodate up to 2 12V 24 Ah batteries.
Key Features:
Specification:
Nominal ACSupply Voltage |
230 VAC (tested +10% -15%) |
Power Output |
19.5-30 VDC |
Load |
2/3 Amps (3 Amps not EN54-4) |
Dimensions (H x W x D) |
300 x 350 x 185 |
Temperature |
-5º to 40ºC ambient |
Humidity |
95% RH non-condensing |
IP Rating |
IP 30 |
Batteries (not supplied) |
2 x 12 V – 12 Ah, 2 x 12 V – 17 Ah, 2 x 12V – 24 Ah |
Recommended Battery |
Yuasa NP (or equivalent) |
Indications |
Output OK: green LED Fault: yellow LED |
Fault Relay |
Change-over NO-COM-NC 1A @ 50 VDC |
Fuse Rating |
Battery: 5 A fast AC supply – 2 A HRC (both 20 mm) |
Cable Entries |
6 off 20/25 mm knockouts Various positions |
Detector Exhaust |
Internal channel to route detector exhaust with 2 x 27 mm knockouts |
Color / Finish |
Matt Black or Grey (RAL 7047) |
Mounting |
4 x 5 mm holes on 286 x 240 centers |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
