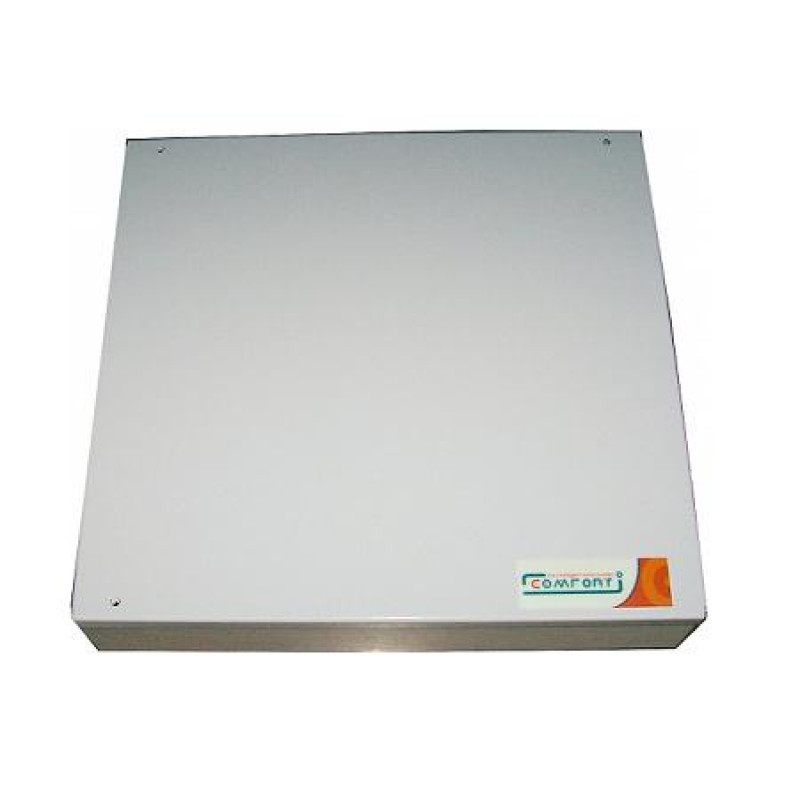

Slave Expansion Panel with EN03 (SEP01-M2/EN03)

Slave Expansion Panel with enclosure 358 x 375 x 94 mm with transformer, tamper switches. 8 inputs and 8 outputs. Max 3 Slaves can be connected in one system to give 64 inputs and 64 outputs.



The Slave Expansion Module allows Comfort II to be expanded beyond 16 Inputs and 16 Outputs. Each Slave contains 8 Inputs and 8 outputs, which can be expanded by connecting LEM01_M2 (8 inputs, 8 outputs) or LEM02-M2 (8 inputs).



The SEM01-M2 has a built-in regulated power supply and is the same size as the main Comfort panel. For the SEM01-M2 supplied in the standard metal enclosure look at product code SEP01 (Slave Expansion Panel) or for a larger enclosure size SEP01/EN03. Other than the physical size and input power requirements, the function of SEM01-M2 and SEM02-M2 are the same.



Delivery Note: 1-2 weeks Lead Time Applicable.
