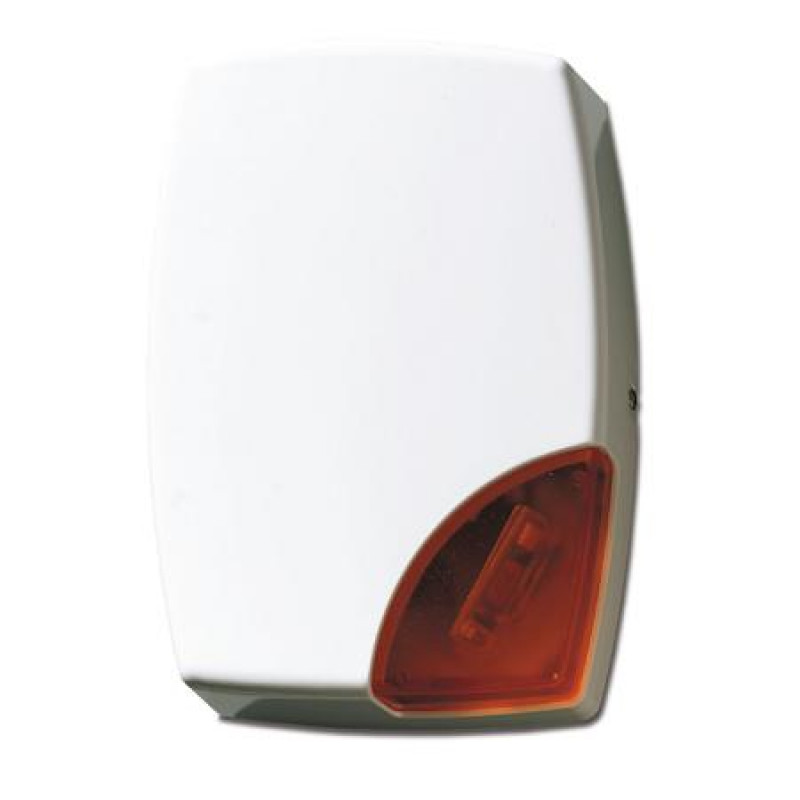

AS506, Outdoor Siren, White with Red Strobe, Nicad Battery Backup (114dB)

AS506, Outdoor Siren, White with Red Strobe, Nicad Battery Backup (114dB)

The AS500 Series comprises a range of quality designed sirens that meet today's security and environmental residential requirements. With its attractive housing, the choice of lens colours and the possibility to mount horizontally or vertically the siren can easily fit any place. The housing in UV-proof and high impact resistant, 3-mm polycarbonate (versions available in ABS) and an optional inner cover provide the ultimate protection.

Key Features:

• Attractive high quality shaped housing
• Double piezo sounder with 114 dB @ 1m sound output
• Vertical or horizontal mounting
• Fully potted electronics
• On-board Ni-Cd-battery
• Strobe flash light
• Selectable comfort LED indication
• Pry-off and opening tamper detection
• Self detection of cable cutting or tampering
• Installer friendly
• Hold-off polarity selection
• Independently hold-off for both beacon and siren
• A choice of cut off time
• Selectable tamper configuration

Specifications:

• Housing: Polycarbonate (3 mm)
• Sounder: Double piezo
• PCB protection: Fully potted
• Tamper & pry-off: Yes
• Power: 10 - 14.5 VDC
• Standby current (typical): 40 mA (with NiCd battery), 20 mA (without battery)
• Operating current (typical): 350 mA
• Sound output: 114 dB
• Frequency: 0.5 to 3 KHz
• Operating temperature: -25° to +55°C
• Flash frequency: 50 to 60 flashes/minute
• Cut-off timer: 3 min,  5 min, 10 min, 20 min
• Comfort LED: Yes
• Dimensions: 210 x 300 x 55 mm (W x H x D)
• Low voltage detection: Yes
• Metal inner cover: Optional
• On board self-activating battery: 10.8 V / 280 mAh
