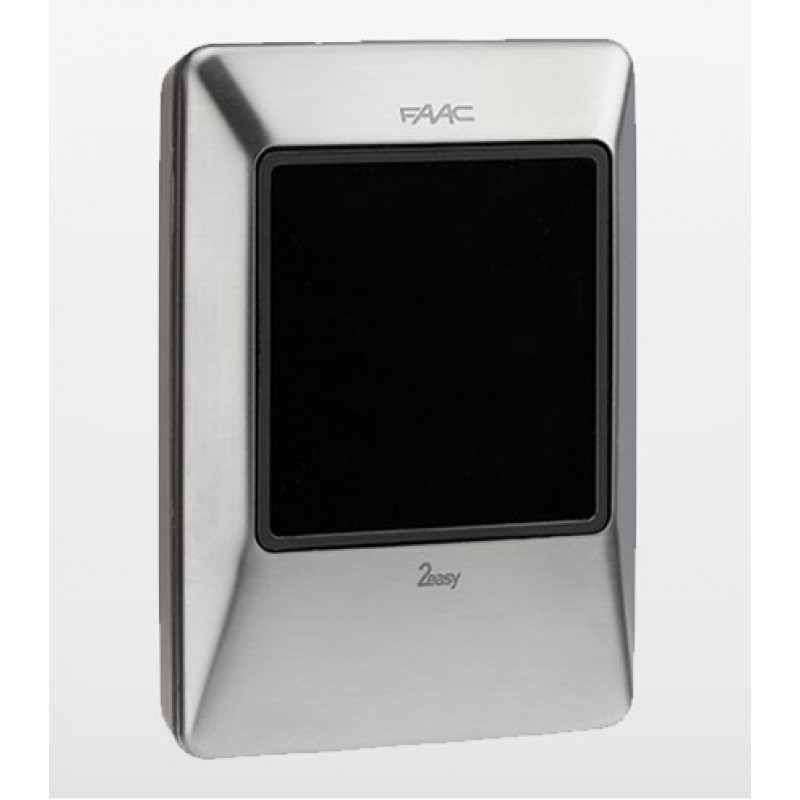

786040, XTRB HF-TAG Reader - Stainless Steel

786040, XTRB HF-TAG Reader - Stainless Steel

  • Brand:FAAC
  • Product Code:786040
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


786040, XTRB HF-TAG Reader - Stainless Steel

XTR B proximity reader. The new intelligence.

Just 21mm in depth, there's no limit to the number of tags that can be stored. Tags can be saved individually or in groups, and as master or slave versions in order to manage duplicates.

XTR B can operate in single channel or two channel mode with impulse or latching commands. Multiple features can be enabled by varying the way in which the TAG is bought towards the reader.

Installation is versatile and intuitive: connection is via two non polarised cables. It is also possible to connect up to 14 XTR B units to one BUS 2easy board. The BUS Relay adapters which are available in 2 and 4 channel versions, make it possible to use the XTR B with boards without BUS 2easy technology or as a stand alone activation device.

Technical specification

  • Easy to program - The XTR B can operate in single-channel or two-channel mode with impulse or hold-torun commands. Multiple features can be enabled by varying the way in which the TAG is brought towards the reader.
  • Unlimited number of tags that can be stored - There is no limit to the number of tags that can be stored by the XTR B. Tags can be saved individually or in groups, and as master or slave versions, in order to manage duplicates.
  • Compatible with BUS 2easy boards - Installation is versatile and intuitive: connection is via two non-polarised cables. It is also possible to connect up to 14 XTR B units to one BUS 2easy board.
  • Compact Italian Design - All the smart features are enclosed into a strong Italian-design case.  The XTR B is a high-quality reader. All contained within a depth of just 21mm.

PRODUCT VARIANT ALSO AVAILABLE ON REQUEST

Model VariantPart Number
STAINLESS STEEL 786040
BLACK 786041

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
