Fermax, 1491, Meet 4 Relay Module
- Brand:Fermax
- Product Code:1491
- Availability:Please Call or Email Us to Check Availability

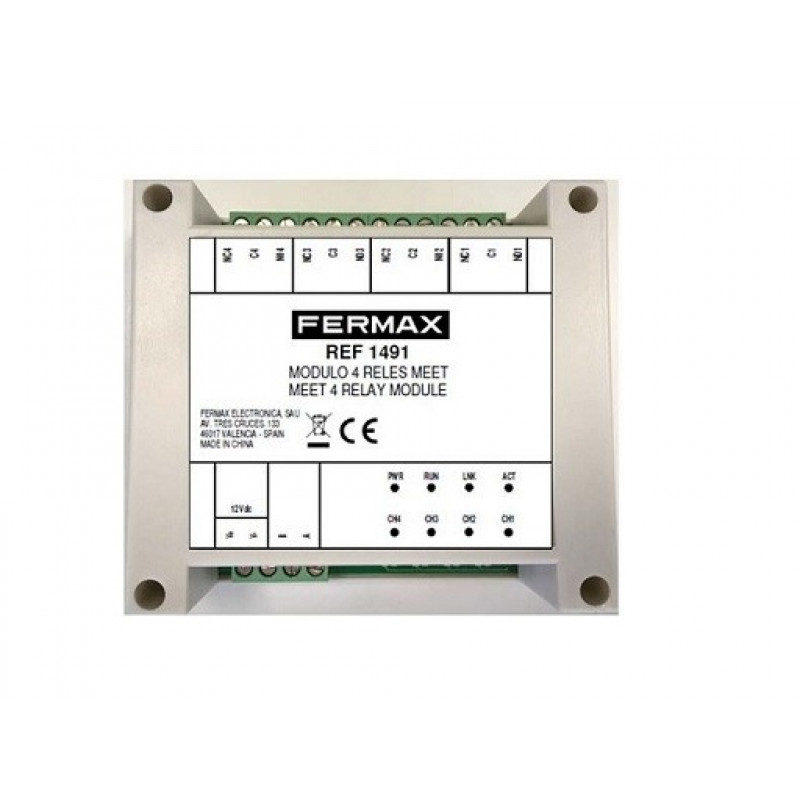

Fermax, 1491, Meet 4 Relay Module
The 1491 is a Meet 4 Relay Module, running under standard Modbus protocol, makes Meet monitors able to extend door release to 4 additional relays or doors. It works as a slave device connected to the RS-485 port of panel #1 of each block.
Specifications:
- Power Supply:
- 7-26 Vdc (12Vdc recommended)
- Standby: 0,28W
- Maximum: 5,5W
- Connectivity:
- RS-485 Modbus screwed connection
- 4 relays output: COM/NO/NC
- Operational:
- Relay contacts: 220V/5A
- Status led
- Power. On after power-on.
- RUN: Blinking after power-on.
- LNK: Valid data received in the last minute.
- ACT: RS-485 activity.
- Relay activation led: CH1-CH4
- Working Environment:
- Temperature: -40 oC .. +55 oC
- Humidity: 10 – 95% (Non-condensing)
- IP: 51
- Dimensions:
- 115 (W) x 90 (H) x 40 (D) mm
- 35 mm DIN rail mounting.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
